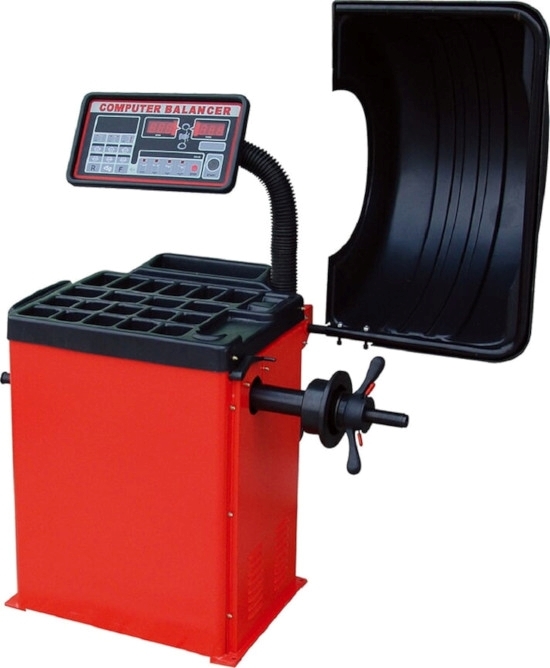

Highly accurate and durable wheel balancing system that incorporates standard features such as multi-mode vehicle balancing for cars and motorcycles, static/dynamic and 3 ALU balance configurations, storage pegs, and 4 sizes of centering cones.

The WB-953 also incorporates an LED touch panel keypad and speed nut to provide fast and efficient wheel balancing, along with having the ability for multi-user operation.

Specifications

Data Entry: Keypad
Max Wheel Diameter: 39"
Rim Width: 1.5" - 20"
Rim Diameter: 10" -24"
Wheel Weight Capacity: 150lbs
Accuracy: 1 gram
Power: 110 VAC - 15 Amp 1PH
Balancing Time: 7 sec
RPM: 200
Ship Weight: 335lbs

Standard Accessories

100gm Weight
Weight Hammer / Application Tool
Wheel Caliper
Clamp Bowl/Bowl Edge
Cone Sets - Small, Medium, Large and Extra Large Sizes
Speed Nut Assembly
Large Measurement Indicator

Features

LED touch panel keypad with easy-to-read icons
Large Rim Diameter Balancing - able to balance up to 24" rim diameter and 39" overall wheel diameter.
Multi mode vehicle balancing - stancard with car and motorcycle balancing modes
Ease of use - with manual measurement input for distance and diameter with static / dynamic and 3 ALU modes.
Self calibrating and Self Diagnosis - for improved efficiency and serviceability.
Integrated measurement indicator - allows for ease of acquiring measurement data with a retractable measuring tool, integrated into the machine.
Multi user operation - allows 2 operators to work simultaneously with different settings.
Integrated Centering Spring -to assist with quick and proper wheel mounting on balancing shaft.
Electronic Braking System - conveniently slows wheel down after balancing cycle
Heavy Duty Balancing Shaft -36mm diameter balancing shaft accommodates wide range of wheels of different sizes and shapes.
Speed Nut Mounting - The speed nut allows for quick and efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
Multi pocket wheel weight shelf - 23 articulated pockets, over 1.5" deep, allowing plenty of storage weights, tooling, and cones.
Large Wheel Hood - the large 38" hood / shroud prevents debris from flying off the tire while in use
Storage Pegs - for convenient storing of balancer cones and caliper on side of housing.

WB-953 Wheel Balancer Manual

Optional Accessories

(see checkboxes above)
