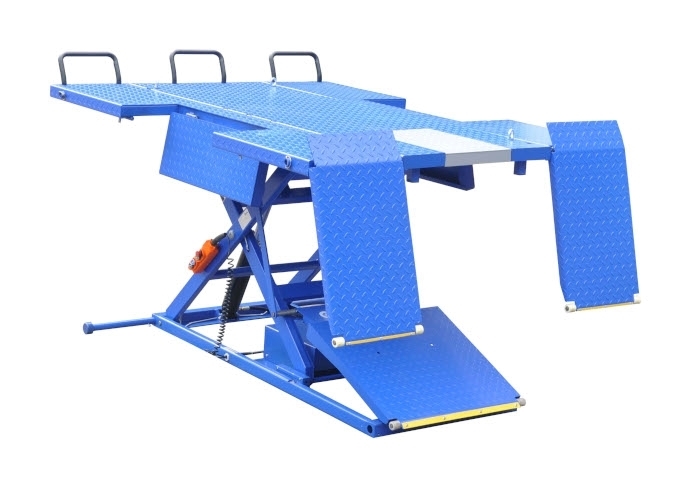

Elect / Hydra UTV Lift iDEAL U-2200IEH-XR

This Electric/Hydra UTV lift is industry leading in platform size and weight capacity, with exclusive side extensions with center drop panel design. Provides a smooth and quiet hydraulic operation. Great for large to small UTVs, ATVs, golf carts and go karts.
SKU: U-2200IEH-XR
Manufacturer part number: U-2200IEH-XR
Manufacturer: iDEAL
*
$4,649.00

WE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.


CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!


**1 YEAR WARRANTY**


Features

  • 110V integrated Elec/Hydra Power Unit with Cord and Plug
  • Hand-held remote control pendant
  • Magnetic Lock Release
  • 6 each locking height positions
  • Great for large to small UTVs, ATVs, golf carts and go karts
  • Platform size 88.6" x 65"
  • Exclusive Side Panels with Center Drop Panels
  • Rear Drop Panels
  • Stabilizer Bar
  • Full Width Ramp
  • Tie down anchor bolts

Specifications

Capacity: 2,200 lbs
Min Height: 7"
Lifting Height: 47.2"
Width Overall: 65"
Table Dimensions with sides: 88 1/2" x 65" (Main Table 31.5"W Side Extensions 16 3/4" Each)
Lifting Time: 30s
Lowering Time: 30s

Shipping Weight: 970 lbs
Power: 110V-60Hz, 15 Amp, 1 PH

WE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.


CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!


**1 YEAR WARRANTY**


Features

  • 110V integrated Elec/Hydra Power Unit with Cord and Plug
  • Hand-held remote control pendant
  • Magnetic Lock Release
  • 6 each locking height positions
  • Great for large to small UTVs, ATVs, golf carts and go karts
  • Platform size 88.6" x 65"
  • Exclusive Side Panels with Center Drop Panels
  • Rear Drop Panels
  • Stabilizer Bar
  • Full Width Ramp
  • Tie down anchor bolts

Specifications

Capacity: 2,200 lbs
Min Height: 7"
Lifting Height: 47.2"
Width Overall: 65"
Table Dimensions with sides: 88 1/2" x 65" (Main Table 31.5"W Side Extensions 16 3/4" Each)
Lifting Time: 30s
Lowering Time: 30s

Shipping Weight: 970 lbs
Power: 110V-60Hz, 15 Amp, 1 PH
