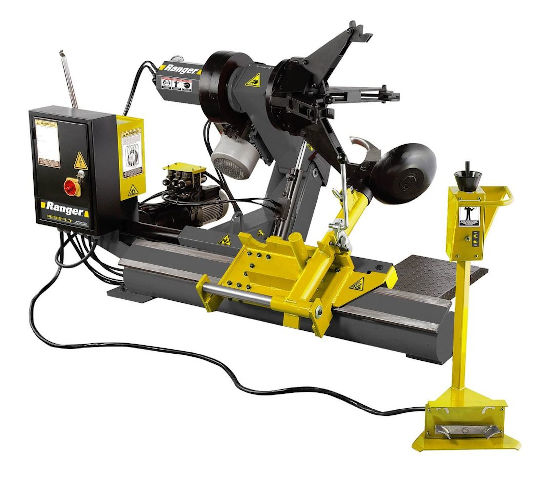

The Ranger R26FLT is a heavy-duty tire changer that handles truck, bus and commercial van tires with ease. Comes with joystick control.
The Ultimate Truck Tire Changer
The Ranger R26FLT is an incredibly fast and efficient large tire changer. Swap out tubeless truck, agricultural and off-road tires from 14" to 26" in just minutes. A portable remote control brings convenient precision to your finger tips and saves you precious time. We've thoroughly explored all aspects of truck wheel service to develop the quickest large tire changer possible, so high-volume tire shops can get the speed, capability and dependability that they demand.
Experience your shortest floor-to-floor service times ever, making your job easier and more profitable. All of our tire machines are built with forged, hardened and ground components designed to resist scoring, grooving and wear. Our engineers understand that speed, convenience and safety are your top priorities, so we've made them ours, as well. Ranger tire changers are built to allow operators to learn and use them quickly and safely, so you'll be up and running in no time.
Portable control unit
Simple controls and versatile unit console let the operator safely monitor your tire changers from the most advantageous angle.
Self-centering hydraulic clamping chuck
Clamp from either the center bore of the wheel or the inside of the wheel. Either way, this tire changer has you covered.
Super-duty electric hydraulic motor & hydraulic drive
This powerfully sophisticated, bi-directional hydraulic motor delivers smooth torque to the tire changer at all times.
Sturdy spindle, chuck & mount / de-mount head
The entire assembly gracefully rotates, raises and lowers via easy-to-learn, simple-to-use operator controls.
Quick setup
The R26FLT tire changer features an exceptionally swift-positioning, locking mount/demount arm.
Designed to perform and built to last
Ranger tire changers can take whatever punishment your shop can throw at them. They’re easy to control and rugged enough to hold up for years of low-maintenance service. The welded steel body is just the start: this tire changer boasts aluminum-alloy air cylinders and completely sealed components, making it one of the hardiest tools you’re likely to put in your shop.
Hydraulic sled carriage
Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.
One piece
Tire changers with single-piece frames offer superior rigidity over time.
Spreader jaws
Hydraulically operated spreader-type jaws ensure secure clamping of virtually all rims and off-road style wheels.
Safe and easy to use
It’s simple: our sensible ergonomic design means easier operation for you and your technicians.
Powerful bead breaker
Quick set-up and a powerful stainless steel air cylinder provide plenty of tire-busting power. Combine that with our durable bead breaker blade, and you’ve got the capability to service virtually anything that rolls into your shop.
Massive chuck spindles
Huge spindle to handle the heaviest loads.
Built-in sturdiness
Sturdy spindle, chuck and mount / demount head hydraulically rotates, raises and lowers with simple operator controls.
A gentle touch
Very gentle on over-the-road tires and tubeless tires mounted on aluminum wheels.
Click links below for more info:
R26FLT Truck Tire Changer User Manual
R26FLT Truck Tire Changer Sell Sheet
R26FLT Truck Tire Changer Warranty
4 Most Common Mistakes When Buying a Tire Changer
Specifications R26FLT
Super-duty electric motor and hydraulic drive for superior torque and wheel holding power
Self-centering hydraulic clamping chuck
Heavy, tapered roller bearings and a dual direction hydraulic motor provide smooth torque
Quick positioning and locking mount / demount arm
Hydraulic sled carriage for positioning, bead loosening, mounting and de-mounting procedures
Single piece frame for superior rigidity
Hydraulically operated spreader jaws ensure secure clamping of virtually all rims and off-road style wheels
Massive chuck spindle handles the heaviest loads
Sturdy spindle, chuck and mount-demount head hydraulically rotates, raises, and lowers with simple operator controls
Very gentle on over-the-road tires and tubeless tires mounted on aluminum wheels
Simple design is easy to use
Tire lubrication comes standard
Funnel comes standard
Large bead tool comes standard
Small bead tool comes standard
Rotary valve O-rings comes standard
Fuses comes standard
Wheel clamp comes standard
Lever grease gun comes standard
Drive System Type: Electric / Hydraulic
Standard Voltage: 3 HP (220 VAC 50-60 HZ)
Wheel Clamping Method: 4 clamps
Bead Breaking System: Armor-plated Disc
Max Rim Diameter: 14" – 26"
Max Tire / Wheel Diameter: 63"
Max Tire / Wheel Width: 31"
Shipping Weight: 1,425 lbs.
Shipping Dimensions: 63" x 80" x 38"
