15000lb Cap 2 Post Lift Clear Floor, Symmetric PRO 15000CX

PRO 15000CX


SKU: PRO 15000CX
Manufacturer part number: PRO 15000CX
$7,895.00

WE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.

WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.

CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!


**1 YEAR WARRANTY**

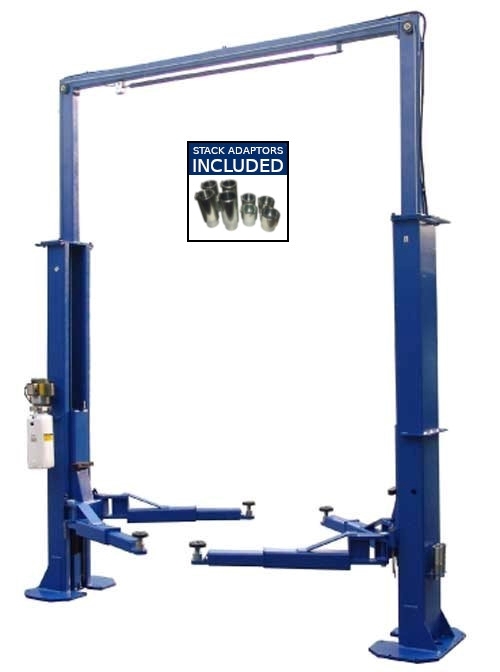

PRO 15000CX 15,000 lb. capacity  2 post lift comes standard with low-profile drop-in adjustable swivel pads with height adapter, internal hose routing, padded overhead shut-off bar with kill switch, reduced overall width and rubber door guards, making this model one of the best heavy duty 2 post lift values in the industry.

Features

15,000 lb lifting capacity
Extended overall height
Padded 'Shut off' bar with kill switch
Low profile 'drop in' swivel pads with 2" adjustable height
4 ea. stackable 3" and 5" drop-in height adapters
Reduced overall width with front-side mounted power unit
Internal hose routing with integrated hose guards
Rubber door guards
Anchor bolts and hardware included


PRO 15000CKX 2 Post Lift User Manual

PRO 15000CKX 2 Post Lift Warranty


Specifications

Lift ModelPRO 15000CX
Capacity15,000 lbs.
Height Overall180"
Width Overall w/ Power Unit156-1/2"
Max Lift Height80-1/2"
With Tallest Adapter87"
Width Between Columns121-1/2"
Min. Pad Height5"
Drive Thru Clearance109"
Lifting Speed45S
Asymmetric / SymmetricSymmetric
Clear Floor / Floor PlateClear Floor
Short Arm Reach - min/max37" - 52-1/2"
Long Arm Reach - min/maxSame
Cable Diameter3/8"
Column Size7-3/4" x 12-1/2"
Column Steel Thickness8mm
Carriage Steel Thickness8mm
Arm Steel Thickness8mm
Ship Weight2,590 lbs.
Power220V - 20 AMP - 1 PH

WE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.

WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.

CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!


**1 YEAR WARRANTY**


PRO 15000CX 15,000 lb. capacity  2 post lift comes standard with low-profile drop-in adjustable swivel pads with height adapter, internal hose routing, padded overhead shut-off bar with kill switch, reduced overall width and rubber door guards, making this model one of the best heavy duty 2 post lift values in the industry.

Features

15,000 lb lifting capacity
Extended overall height
Padded 'Shut off' bar with kill switch
Low profile 'drop in' swivel pads with 2" adjustable height
4 ea. stackable 3" and 5" drop-in height adapters
Reduced overall width with front-side mounted power unit
Internal hose routing with integrated hose guards
Rubber door guards
Anchor bolts and hardware included


PRO 15000CKX 2 Post Lift User Manual

PRO 15000CKX 2 Post Lift Warranty


Specifications

Lift ModelPRO 15000CX
Capacity15,000 lbs.
Height Overall180"
Width Overall w/ Power Unit156-1/2"
Max Lift Height80-1/2"
With Tallest Adapter87"
Width Between Columns121-1/2"
Min. Pad Height5"
Drive Thru Clearance109"
Lifting Speed45S
Asymmetric / SymmetricSymmetric
Clear Floor / Floor PlateClear Floor
Short Arm Reach - min/max37" - 52-1/2"
Long Arm Reach - min/maxSame
Cable Diameter3/8"
Column Size7-3/4" x 12-1/2"
Column Steel Thickness8mm
Carriage Steel Thickness8mm
Arm Steel Thickness8mm
Ship Weight2,590 lbs.
Power220V - 20 AMP - 1 PH
