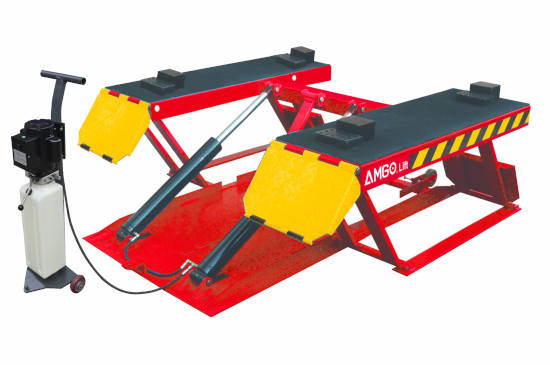

Low Rise Portable Lift LR10 Amgo Hydraulics

LR10


SKU: LR10
Manufacturer part number: LR10
Manufacturer: AMGO Hydraulics
$2,995.00

Amgo warranty

The LR10 portable low-rise lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business. Provides good working height for tires, brakes and body repairs.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

  • Automatic multiple safety locks and safety lock release
  • Portable, easy to move with power unit stand
  • High speed: From 4 1/8″-23 5/8″ in just 50 seconds.
  • Standard rubber pads included


 Click links below for more info:

LR10 Low Rise Portable Lift Manual

LR10 Low Rise Portable Lift Brochure


Specifications

Model:    LR10
Lifting Capacity:    10,000 lbs
Lifting Time:    50S
A1: Lifting Height:    23 5/8″
A2: Minimum Height:    4 1/8″
B: Runway Length:    53 1/4″
C. Overall Runway Length (Inc Ramp): 66"
D: Runway Width:    21 7/8″
E: Overall Length:    76 1/4″
F: Overall Width:    78″
Gross Weight:    1510 lbs
Motor:    2.0HP 220V/60Hz, single phase

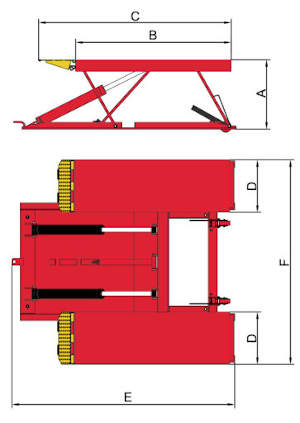

LR10 diagram scissor lift

Amgo warranty

The LR10 portable low-rise lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business. Provides good working height for tires, brakes and body repairs.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

  • Automatic multiple safety locks and safety lock release
  • Portable, easy to move with power unit stand
  • High speed: From 4 1/8″-23 5/8″ in just 50 seconds.
  • Standard rubber pads included


 Click links below for more info:

LR10 Low Rise Portable Lift Manual

LR10 Low Rise Portable Lift Brochure


Specifications

Model:    LR10
Lifting Capacity:    10,000 lbs
Lifting Time:    50S
A1: Lifting Height:    23 5/8″
A2: Minimum Height:    4 1/8″
B: Runway Length:    53 1/4″
C. Overall Runway Length (Inc Ramp): 66"
D: Runway Width:    21 7/8″
E: Overall Length:    76 1/4″
F: Overall Width:    78″
Gross Weight:    1510 lbs
Motor:    2.0HP 220V/60Hz, single phase

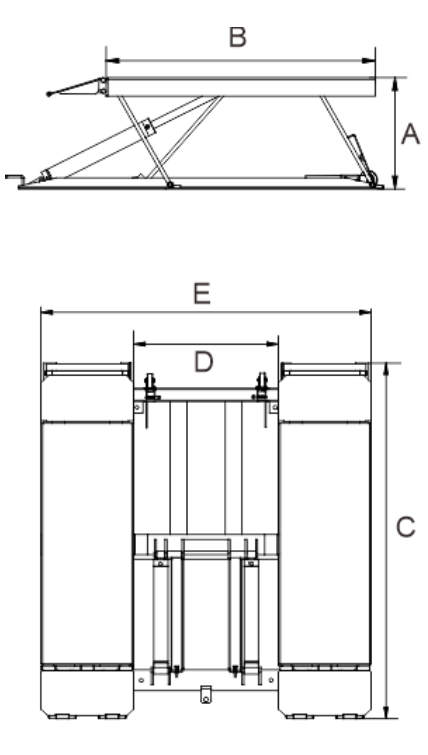

LR10 diagram scissor lift
