**1 YEAR WARRANTY**

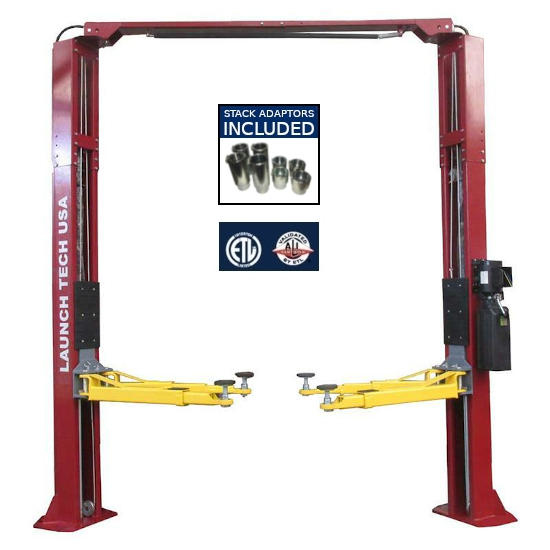

Launch Tech USA TLT 210-XT 2 Post Lift is a multipurpose full asymmetric lift that is height and width adjustable. It may be installed in a standard or rotated column configuration to accommodate the smallest cars to the largest SUVs and trucks.

This ALI/ETL Certified lift comes with a one (1) year limited warranty.

Features and Benefits

Adjustable Column Height - Provides an extra 6" of column height adjustment for ease of installation with various ceiling heights.
Adjustable Column Width - Provides extra 6” of width adjustment for narrow service bays to custom fit your shop.
Rubber Door Guards - Provides added security against door damage.
Outer Hose Guards - Protects hydraulic hoses from damage.
Stackable Foot Pad Extensions - Extra tall applications are no problem with the (4) 6” tall and (4) 3” short extensions.
Single Point Lock Release - Allows technicians to disengage both column locks simultaneously.
Heavy-Duty Arm Restraint System - Oversize rugged steel gears, pins, and springs for trouble free operation.
Double Telescoping Screw Pads - Used with or without rubber pads offering 6.5” adjustment for complete vehicle coverage.
Standard Asymmetric  - Lift installed with columns facing each other.
Rotated Asymmetric - Lift installed with columns offset - rotated.
Anchor bolts and hardware included

LAUNCH TECH USA TLT 210-XTR 2 Post Lift Manual

Specifications (Standard)

Maximum Lifting Height: 76.4"
Minimum Column Height: 143"
Cylinder Full Height: 145.2"
Total width: 136.6"
Drive-Thru Clearance: 98.4"
Floor to Overhead Switch: 140"
Front Arm Reach (min / max): 23.6"  / 43.5"
Rear Arm Reach (min / max): 38.6" / 61.8"
Screw Pad Height: 4" to 7.5"
Inside Column Width: 110.2"
Motor: 2 HP
Voltage: 208-230 Volt/60hz/Single Phase
Rise Speed: 54 seconds
Max. Load Per Arm: 2500 lbs
Min. Ceiling Height Required: 143.5"
Narrow Bay Setting: Deduct 5.9"
Maximum Column Height: 149"
Capacity: 10,000lbs
Ship Weight: 1,750 lbs
Dimensions: 110"L x 24"W X 48"H

Specifications (Rotated)

Maximum Lifting Height: 76.4"
Minimum Column Height: 143"
Cylinder Full Height: 145.2"
Total width: 137.9"
Drive-Thru Clearance: 92"
Floor to Overhead Switch: 140"
Front Arm Reach (min / max): 23.6"  / 43.5"
Rear Arm Reach (min / max): 38.6" / 61.8"
Screw Pad Height: 4" to 7.5"
Inside Column Width: 101.9"
Motor: 2 HP
Voltage: 208-230 Volt/60hz/Single Phase
Rise Speed: 54 seconds
Max. Load Per Arm: 2500 lbs
Min. Ceiling Height Required: 143.5"
Narrow Bay Setting: Deduct 5.9"
Maximum Column Height: 149"
Capacity: 10,000lbs
Ship Weight: 1,750 lbs
Dimensions: 110"L x 24"W X 48"H
