Flush Mount Scissor Lift 9000lbs XL-9F Amgo Hydraulics

XL-9F


SKU: XL-9F
Manufacturer part number: XL-9F
Manufacturer: AMGO Hydraulics
$5,775.00

Amgo warranty

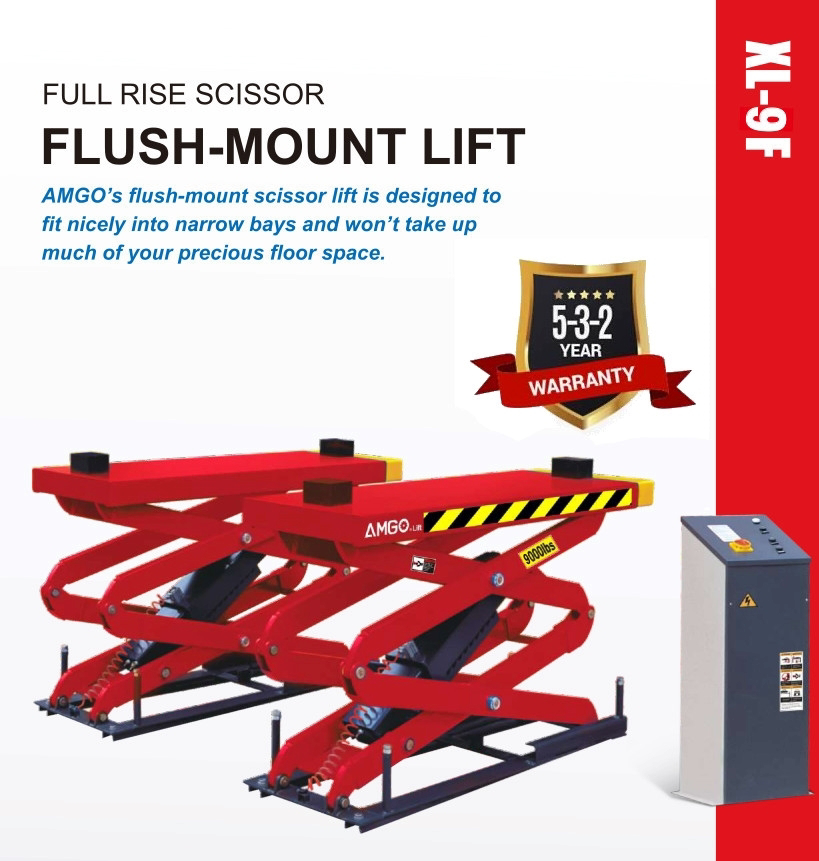

AMGO’s Full Rise XL-9F Flush Mount Scissor Lift works great for raising vehicles high enough to walk underneath, to work on tires and even exhaust or brake line work. This lift can be flush mounted to the floor, maximizing limited bay space. With 9000 lb lifting capacity, the XL-9F is strong, versatile, and easy to use.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• Features an electric/hydraulic power system
• Dual synchronous cylinders are applied to assure the lifting level on both platforms
• Platforms are designed to be extended. It can be adjusted for any car type.
• Both mechanical and hydraulic lock system. This makes it one the safest small scissor lift in the world


 Click links below for more info:

XL-9F Flush Mount Scissor Lift Manual

XL-9F Flush Mount Scissor Lift Brochure


Specifications

Model    XL-9F
Lifting Capacity    9,000 lbs
Lifting Time    48 S
A: Lifting Height    87 3/4″
B: Minimum Height    13 3/4″
C: Overall Length    61-68 7/8″
D: Overall Width    74 7/8″
E: Runway Width    21 5/8″
F: Width Between Runways    31 1/2″
Motor    2.0HP,220V/60Hz, single phase
Gross Weight    2,013 lbs

XL-9F diagram

Amgo warranty

AMGO’s Full Rise XL-9F Flush Mount Scissor Lift works great for raising vehicles high enough to walk underneath, to work on tires and even exhaust or brake line work. This lift can be flush mounted to the floor, maximizing limited bay space. With 9000 lb lifting capacity, the XL-9F is strong, versatile, and easy to use.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• Features an electric/hydraulic power system
• Dual synchronous cylinders are applied to assure the lifting level on both platforms
• Platforms are designed to be extended. It can be adjusted for any car type.
• Both mechanical and hydraulic lock system. This makes it one the safest small scissor lift in the world


 Click links below for more info:

XL-9F Flush Mount Scissor Lift Manual

XL-9F Flush Mount Scissor Lift Brochure


Specifications

Model    XL-9F
Lifting Capacity    9,000 lbs
Lifting Time    48 S
A: Lifting Height    87 3/4″
B: Minimum Height    13 3/4″
C: Overall Length    61-68 7/8″
D: Overall Width    74 7/8″
E: Runway Width    21 5/8″
F: Width Between Runways    31 1/2″
Motor    2.0HP,220V/60Hz, single phase
Gross Weight    2,013 lbs

XL-9F diagram
