FEATURED PRODUCT! PRO 9000ACX 2 POST AUTOMOTIVE LIFT

PRO 9000ACX 2 Post Lift: SpotlightWE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.  WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS. VISIT CLARK HEINTZ TOOLS & EQUIPMENT 1298 RTE 3A BOW NH OR CALL 603-234-2612. As always, we welcome customer pickups - for those of you in the New England area, save on shipping by picking up your lift!  If you are NOT located in the New England region, don't let that stop you from calling! We have 15 locations around the United States - call us to arrange a pickup appointment.

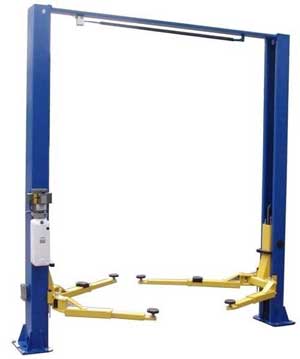

The PRO 9000ACX 2 Post lift is a 9,000 lb. capacity lift which features single piece column construction, reduced overall width, drop in adjustable swivel pads with height adapters, internal hose routing, padded overhead shut-off bar with kill switch, and rubber door guards.

FEATURES: 9,000 lb lifting capacity Asymmetric design Clear Floor design 4ea Stackable 1-3/8" & 4" 'drop-in' Height Adapters Padded 'Shut-Off' Bar w/ Kill Switch Saddle Pad Adapters included (1 pair) Chain driven Powder-coated paint finish Single Piece Column construction Internal Hose Routing w/ integrated Hose Guards Low Profile 'drop-in' Swivel Pads w/ 1-1/2" adjustable height Reduced overall Width w/ front-side mounted Power Unit Rubber Door Guards

SPECIFICATIONS:

Lift Model:     PRO 9000ACX
Capacity:     9,000 lbs.
Height Overall:    142.9"
Width Overall w/ Power Unit:     138" Max
Lift Height:     72"
Width Between Columns:   113.6"
Min. Pad Height:     4"
Drive Thru Clearance:    96"
Lifting Speed:       50S
Asymmetric / Symmetric:     Asymmetric
Clear Floor / Floor Plate:     Clear Floor
Front Arm Reach - min/max:  29" - 41"
Rear Arm Reach - min/max:    37" - 57"
Cable Diameter:    3/8"
Column Size:   7.25" x 10.87"
Column Steel Thickness:     5mm
Carriage Steel Thickness:     5mm
Arm Steel Thickness:     6mm
Ship Weight:     1,370 lbs.
Power:     220V - 20 AMP - 1 PH

VISIT US ONLINE: https://www.nhproequip.com/pro-9000acx-2-post-lift
