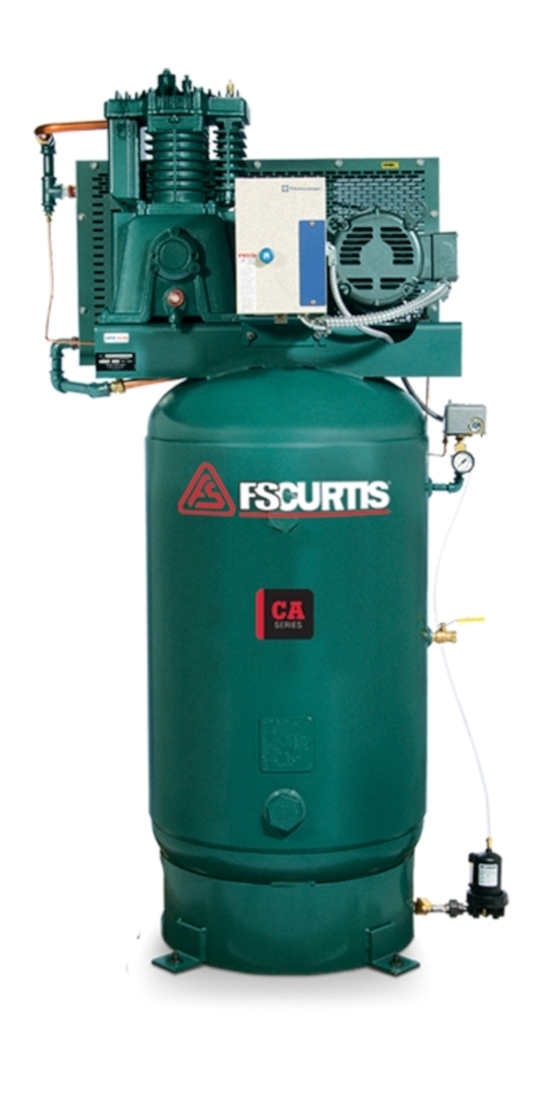

CA10 UltraPack Simplex Vertical Tank Mounted Electric Air Compressor 10 HP FS Curtis

Specifications

Model: CA10
HP: 10
Pump: E71
Tank Size: 120
Orientation: Vertical
CFM @ 175PSI: 34.2
Weight: 1026 lbs

CA Series Air Compressors Standard Features

• Splash lubricated
• ASME air receiver (vertical or horizontal)
• UL approved pressure switch
• OSHA approved totally enclosed belt guard
• ASME approved safety relief valve
• ASME approved discharge air service valve
• Slow V-belt drive
• Large metal intake filter-silencers
• Tank shut off valve
• Dial read-out pressure gauge indicator
• Oil level sight indicator
• NEMA-1 control panel
• Automatic Start-Stop control (5-7.5HP)
• Magnetic motor starter (60Hz)
• Premium Efficiency Motors (3-phase only)
• Automatic Start-Stop control
• Factory filled lubricant

Ultra Pack Advantage:
• Air-cooled aftercooler
• Low oil level shutdown (NEMA 1)
• Automatic tank drain
• Tank isolator pads
• Dual Control (10-15HP)
• UltraShield 5 year warranty

THE MOST DURABLE PUMP CONSTRUCTION AVAILABLE

Meticulous Material Selection Ensures Long-Term Reliability.

• 100% cast-iron cylinders and cylinder heads
• Long-lasting, corrosion-resistant crankshaft
• Reduces thermal stress for increased reliability
• Deep-finned cast-iron cylinders and cylinder head for cool operation
• Slow-turning pump increases pump life

INDUSTRIAL DESIGN

The Most Robust Reciprocating Air Compressor In Its Class

• Provides higher pressures, better efficiency and longer life
• Ready to handle rugged, heavy-duty applications

QUALITY COMPONENTS

For Extended Product Life And Continuous Performance.

• Industrial-grade main roller bearings are precision fit for support of all rotating parts
• High-flow, heavy-duty stainless-steel valve system delivers more cfm per horsepower
• Robust intercooler increases compressor efficiency
• Metal intake filter/silencer is superior to plastic
• Heavy-duty stamped-steel belt guard
• Suction valve head unloaders for continuous running air compressors
