Bendpak RJ45LP 4,500-lb. Capacity Rolling Bridge Jack Easy-Roll Wheels Low Profile

RJ45LP


SKU: RJ45LP
Manufacturer part number: RJ45LP
Manufacturer: BendPak
$2,100.00

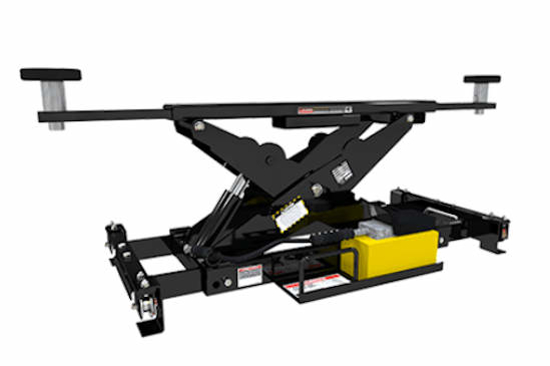

BendPak RJ45LP rolling bridge jack is designed to hold up to 4,500 lbs. and features a low-profile design with easy-to-roll wheels. Use this 4-post bridge jack with your BendPak HD-9 series four-post car lift for increased versatility and productivity.

Low-Profile Design with 4,500 lbs. Full Wheel Service Capability

The RJ45LP rolling bridge jack is ideal for any shop with the HD-7 series or HD-9 series four-post lift model, arguably the most popular and versatile four-post car lifts on the market. Featuring an impressive low-profile design, the RJ45LP lift pads sit just 4.25" from the runway surface and is equipped with easy-to-roll wheels for effortless gliding down the runway track. For those with an HD-7 or HD-9 four-post lift that are in need of wheel service capability, the RJ45LP offers extreme versatility and convenience, in a low-profile package.

What is the difference between the RJ45LP and RJ45W?

The RJ45LP and RJ45W rolling bridge jacks are essentially the same except for two specifications: First, the RJ45LP minimum drive-over height is 4.25" and the RJ45W minimum drive-over height is 4.5". Second, the RJ45LP maximum arm reach is 61" wide and the RJ45W maximum arm reach is 57" wide. Take a look at the RJ45W Bridge Jack.

Low-Profile Bridge Jack

The RJ45LP bridge jack has a minimum drive-over height of just 4.25" when fully lowered. This provides ample clearance for low-stance sports cars and other modified vehicles.

Easy-Roll Wheels Come Standard

Completely redesigned, the RJ45LP rolling bridge comes standard with easy-roll wheels that fit onto the runway channels on standard four-post lift models ​7,000-lbs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.

Rubber contact pads

BendPak protects your vehicles by providing a non-marring rubber contact pad on the popular ​RJ45LP rolling bridge jack. The durable design will hold up for many years of heavy use. We highly recommend purchasing the optional frame cradle set for use on trucks and SUVs.

Stackable adapters

Once your rubber contact pads are positioned under the manufacturer-recommended lift points, you may find that high-clearance vehicles are hard to reach. The stackable adapter set comes in handy to bridge that gap and make lifting easier.

High-pressure hydraulic power unit

Attached to the rolling bridge jack is a hydraulic power unit that also features an airline with 125 psi and 10 – 20 CFM. This independent power unit is ergonomically controlled with a foot pedal attached directly to the jack.

Three lock levels

With three lock positions to choose from, it’s easy to find the perfect height to perform wheel and brake service. For additional height, raise the car lift to its max height, add the stackable adapters and raise the rolling bridge jack as high as it will go. Now you have more access to the undercarriage than ever before.


 Click links below for more info:

RJ45LP Rolling Jack Brochure

RJ45LP Rolling Jack Warranty


Specifications

  • 4,500-lb. lifting capacity
  • Easy-Roll Wheels
  • Low-profile minimum drive-over height, wider reach lifting points
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit
Lifting Capacity: 4,500 lbs.
Suitable Lift Model(s): HD-7 Series, HD-9 Series, GP-9 series

Min. Drive-Over Height*


Pad Only: 4.25"
Pad + 2.75" Adapter: 7"
Pad + 5.5" Adapter: 9.75"

Max. Lifting Height*


Pad Only: 15.25"
Pad + 2.75" Adapter: 18"
Pad + 5.5" Adapter: 21"

Reach


Support Base Width: 35.5" - 46.5"
Max. Arm Reach: 61"
Min. Arm Reach: 42"
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 2,490 PSI
Power Requirement: None
Shipping Weight: 306 lbs.
Shipping Dimensions: 41.25" x 25" x 13"

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
