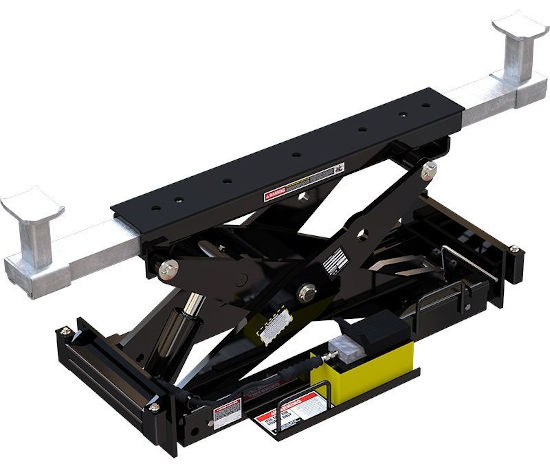

Bendpak RBJ25000 25,000-lb. Capacity Rolling Bridge Jack

RBJ25000


SKU: RBJ25000
Manufacturer part number: RBJ25000
Manufacturer: BendPak
$5,595.00

This is our most powerful rolling bridge jack ever, with 25,000 lbs. of muscle meant to service some of the biggest commercial fleets on earth. Use this jack on the 40,000-lb. capacity HDS40 truck lift to perform wheel service on almost any heavy-duty vehicle on wheels.

Lift 25,000 lbs. for Full Wheel Service Capability

Two RBJ25000 rolling bridge jacks will handle a vehicle up to 50,000 lbs. That means these jacks are over-engineered to handle offset centers of gravity on extremely heavy vehicles. Who might need bridge jacks of this caliber? For one, heavy-duty trucks and buses tend to require a bridge jack rated for more than half of the overall vehicle weight. Generally speaking, if you can safely lift a vehicle with the HDS-40 four-post lift, you can safely perform wheel service with the RBJ-25000 rolling bridge jack.

Steel contact pads

BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axel and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars.

High-pressure hydraulic power unit

A powerful pneumatic-hydraulic power unit creates a dedicated power source for the rolling bridge jack. Two jacks will have separate airlines that can connect together on an airline kit. The foot pedal is air-powered, so a few simple pushes and the jack is fully lifted.

Three lock levels

Lift to three lock positions for your convenience. The higher the jack, the more undercarriage clearance you get on your four-post lift. Every rolling bridge jack offers premium safety standards at every lock position. The RBJ25000 is over-engineered to easily raise 25,000 lbs. in seconds flat.


 Click links below for more info:

RBJ25000 Rolling Jack Brochure

RBJ25000 Rolling Jack Warranty


Specifications

  • 25,000-lb. lifting capacity
  • Steel contact pads
  • High-pressure hydraulic power unit
  • Optional air-line kit
Lifting Capacity: 25,000 lbs.
Suitable Lift Model(s): HDS-40 Series

Min. Drive-Over Height*


Short Arm Pad: 9"
Short Top Pad: 9.75"
Tall Arm Pad: 10.5"
Tall Top Pad: 11.25"

Max. Lifting Height*


Short Arm Pad: 19"
Short Top Pad: 19.75"
Tall Arm Pad: 20.5"
Tall Top Pad: 21.25"

Reach


Support Base Width: 45"
Max. Arm Pad Reach: 63.75"
Min. Arm Pad Reach: 48.5"
Max. Top Pad Reach: 39.5"
Min. Top Pad Reach: 8"
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 7,200 PSI
Power Requirement: None
Shipping Weight: 786 lbs.
Shipping Dimensions: 47" x 29" x 17"

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.

This is our most powerful rolling bridge jack ever, with 25,000 lbs. of muscle meant to service some of the biggest commercial fleets on earth. Use this jack on the 40,000-lb. capacity HDS40 truck lift to perform wheel service on almost any heavy-duty vehicle on wheels.

Lift 25,000 lbs. for Full Wheel Service Capability

Two RBJ25000 rolling bridge jacks will handle a vehicle up to 50,000 lbs. That means these jacks are over-engineered to handle offset centers of gravity on extremely heavy vehicles. Who might need bridge jacks of this caliber? For one, heavy-duty trucks and buses tend to require a bridge jack rated for more than half of the overall vehicle weight. Generally speaking, if you can safely lift a vehicle with the HDS-40 four-post lift, you can safely perform wheel service with the RBJ-25000 rolling bridge jack.

Steel contact pads

BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axel and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars.

High-pressure hydraulic power unit

A powerful pneumatic-hydraulic power unit creates a dedicated power source for the rolling bridge jack. Two jacks will have separate airlines that can connect together on an airline kit. The foot pedal is air-powered, so a few simple pushes and the jack is fully lifted.

Three lock levels

Lift to three lock positions for your convenience. The higher the jack, the more undercarriage clearance you get on your four-post lift. Every rolling bridge jack offers premium safety standards at every lock position. The RBJ25000 is over-engineered to easily raise 25,000 lbs. in seconds flat.


 Click links below for more info:

RBJ25000 Rolling Jack Brochure

RBJ25000 Rolling Jack Warranty


Specifications

  • 25,000-lb. lifting capacity
  • Steel contact pads
  • High-pressure hydraulic power unit
  • Optional air-line kit
Lifting Capacity: 25,000 lbs.
Suitable Lift Model(s): HDS-40 Series

Min. Drive-Over Height*


Short Arm Pad: 9"
Short Top Pad: 9.75"
Tall Arm Pad: 10.5"
Tall Top Pad: 11.25"

Max. Lifting Height*


Short Arm Pad: 19"
Short Top Pad: 19.75"
Tall Arm Pad: 20.5"
Tall Top Pad: 21.25"

Reach


Support Base Width: 45"
Max. Arm Pad Reach: 63.75"
Min. Arm Pad Reach: 48.5"
Max. Top Pad Reach: 39.5"
Min. Top Pad Reach: 8"
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 7,200 PSI
Power Requirement: None
Shipping Weight: 786 lbs.
Shipping Dimensions: 47" x 29" x 17"

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
