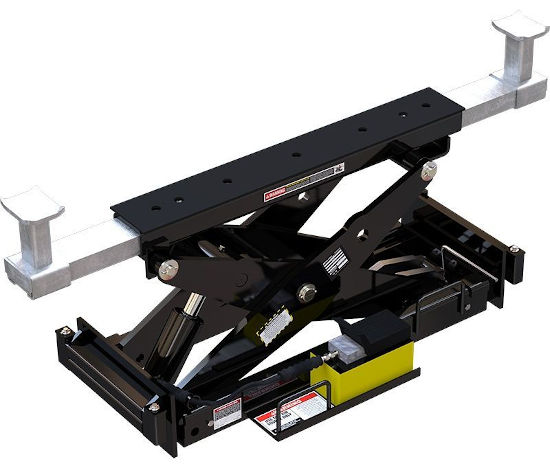

Bendpak RBJ18000 18,000-lb. Capacity Rolling Bridge Jack

RBJ18000


SKU: RBJ18000
Manufacturer part number: RBJ18000
Manufacturer: BendPak
$5,795.00

The powerful 18,000-lb. capacity RBJ18000 rolling bridge jack is made for use with your HD-35 4-Post series lift. Sometimes a vehicle’s center of gravity isn’t in the exact middle of the vehicle. Even a 30,000-lb. vehicle might require a jack that is rated for more than half the vehicle’s weight.

Lift 18,000 lbs. for Full Wheel Service Capability

While the 18,000-lb. capacity RBJ18000 will handle the weight of many heavy-duty vehicles, some larger trucks, buses and commercial drivers have significantly offset centers of gravity. It’s important to ensure your bridge jack is rated for the entire weight of both the front and back axles of the vehicle. The extra lift capacity of the RBJ18000 will compensate for a shifted center of gravity in heavy-duty vehicles being raised on the HDS-35 or HDS-40 four-post lift series.

Steel contact pads

BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axel and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars.

High-pressure hydraulic power unit

The power unit on the RBJ18000 is strong enough to lift those massive city buses and farm equipment you’re raising on your HD-35 four-post lift. A simple foot pedal controls the jack, which reaches its max extension in seconds flat.

Three lock levels

Your work, your shop. With three lock positions, your rolling bridge jack adapts to the way you get things done. Different factors change your working height: operator preference, operator height, vehicle clearance, ceiling height and more. With three lock positions on the jack, your ultimate working height is that much more versatile.


 Click links below for more info:

RBJ18000 Rolling Jack Brochure

RBJ18000 Rolling Jack Warranty


Specifications

  • 18,000-lb. lifting capacity
  • Steel contact pads
  • High-pressure hydraulic power unit
  • Optional air-line kit
Lifting Capacity: 18,000 lbs.
Suitable Lift Model(s): HDS-40 Series

Min. Drive-Over Height*


Short Arm Pad:
9" (229 mm)
Short Top Pad:
9.75" (248 mm)
Tall Arm Pad:
10.5" (267 mm)
Tall Top Pad:
11.25" (286 mm)

Max. Lifting Height*


Short Arm Pad:
19" (483 mm)
Short Top Pad:
19.75" (502 mm)
Tall Arm Pad:
20.5" (521 mm)
Tall Top Pad:
21.25" (540 mm)

Reach


Support Base Width: 45"
Max. Arm Pad Reach: 63.75"
Min. Arm Pad Reach: 48.5"
Max. Top Pad Reach: 39.5"
Min. Top Pad Reach: 8"
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 7,200 PSI
Power Requirement: None
Shipping Weight: 792 lbs.
Shipping Dimensions: 47" x 29" x 17"

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.

The powerful 18,000-lb. capacity RBJ18000 rolling bridge jack is made for use with your HD-35 4-Post series lift. Sometimes a vehicle’s center of gravity isn’t in the exact middle of the vehicle. Even a 30,000-lb. vehicle might require a jack that is rated for more than half the vehicle’s weight.

Lift 18,000 lbs. for Full Wheel Service Capability

While the 18,000-lb. capacity RBJ18000 will handle the weight of many heavy-duty vehicles, some larger trucks, buses and commercial drivers have significantly offset centers of gravity. It’s important to ensure your bridge jack is rated for the entire weight of both the front and back axles of the vehicle. The extra lift capacity of the RBJ18000 will compensate for a shifted center of gravity in heavy-duty vehicles being raised on the HDS-35 or HDS-40 four-post lift series.

Steel contact pads

BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axel and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars.

High-pressure hydraulic power unit

The power unit on the RBJ18000 is strong enough to lift those massive city buses and farm equipment you’re raising on your HD-35 four-post lift. A simple foot pedal controls the jack, which reaches its max extension in seconds flat.

Three lock levels

Your work, your shop. With three lock positions, your rolling bridge jack adapts to the way you get things done. Different factors change your working height: operator preference, operator height, vehicle clearance, ceiling height and more. With three lock positions on the jack, your ultimate working height is that much more versatile.


 Click links below for more info:

RBJ18000 Rolling Jack Brochure

RBJ18000 Rolling Jack Warranty


Specifications

  • 18,000-lb. lifting capacity
  • Steel contact pads
  • High-pressure hydraulic power unit
  • Optional air-line kit
Lifting Capacity: 18,000 lbs.
Suitable Lift Model(s): HDS-40 Series

Min. Drive-Over Height*


Short Arm Pad:
9" (229 mm)
Short Top Pad:
9.75" (248 mm)
Tall Arm Pad:
10.5" (267 mm)
Tall Top Pad:
11.25" (286 mm)

Max. Lifting Height*


Short Arm Pad:
19" (483 mm)
Short Top Pad:
19.75" (502 mm)
Tall Arm Pad:
20.5" (521 mm)
Tall Top Pad:
21.25" (540 mm)

Reach


Support Base Width: 45"
Max. Arm Pad Reach: 63.75"
Min. Arm Pad Reach: 48.5"
Max. Top Pad Reach: 39.5"
Min. Top Pad Reach: 8"
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 7,200 PSI
Power Requirement: None
Shipping Weight: 792 lbs.
Shipping Dimensions: 47" x 29" x 17"

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
