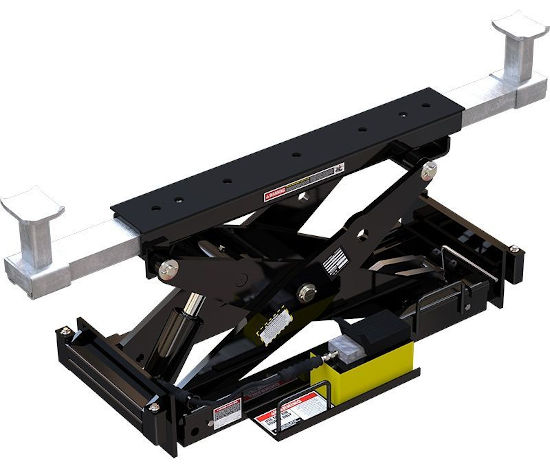

Bendpak RBJ15000 15,000-lb. Capacity Rolling Bridge Jack

RBJ15000


SKU: RBJ15000
Manufacturer part number: RBJ15000
Manufacturer: BendPak
$4,995.00

Bendpak's 15,000-lb. capacity bridge jack is made just for the HDS-27 four-post lift. Perfect if you need to perform full wheel service on heavy-duty vehicles. This particular car lift is truly made for massive trucks and commercial equipment.

Lift 15,000 lbs. for Full Wheel Service Capability

The RBJ15000 bridge jack is capable of lifting half of a 30,000-lb. truck or commercial bus. The HDS-35 four-post car lift is a heavy-duty machine meant for professional shops that deal with massive, specialty equipment. If you have a truck lift, you have easy access to the undercarriage but can’t get to the wheels. A rolling bridge jack opens the door to new service opportunities, such as wheel balancer, wheel alignment and tire changer equipment.

Steel contact pads

BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axle and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars.

High-pressure hydraulic power unit

The power unit to this jack is completely pneumatic-hydraulic. A small airline is attached to the bridge jack and is controlled with an ergonomically designed foot pedal. Two bridges jacks can share a single airline with the addition of BendPak’s exclusive, optional airline kit.

Three lock levels

Raise your jack to three different heights—whatever is most comfortable for you. The work you do varies, so if all you need is to lift the wheels a few inches, just enough to remove them, BendPak makes it easy. Rolling bridge jacks also give a little more raise for extra undercarriage clearance and comfort.


 Click links below for more info:

RBJ15000 Rolling Jack Brochure

RBJ15000 Rolling Jack Warranty


Specifications

  • 15,000-lb. lifting capacity
  • Steel lifting pads standard
  • High-pressure hydraulic power unit
  • Optional air-line kit
Lifting Capacity: 15,000 lbs.
Suitable Lift Model(s): HDS-27 Series, HDS-40 Series

Min. Drive-Over Height*


Short Arm Pad: 9"
Short Top Pad: 10"
Tall Arm Pad: 11"
Tall Top Pad: 12"

Max. Lifting Height*


Short Arm Pad: 19"
Short Top Pad: 20"
Tall Arm Pad: 21"
Tall Top Pad: 22"

Reach


Support Base Width: 45.75" - 59"
Max. Arm Pad Reach: 63.75"
Min. Arm Pad Reach: 48.5"
Max. Top Pad Reach: 39.5"
Min. Top Pad Reach: 7.75"
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 6,000 PSI
Power Requirement: None
Shipping Weight: 708 lbs.
Shipping Dimensions: 48" x 29" x 18"

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
