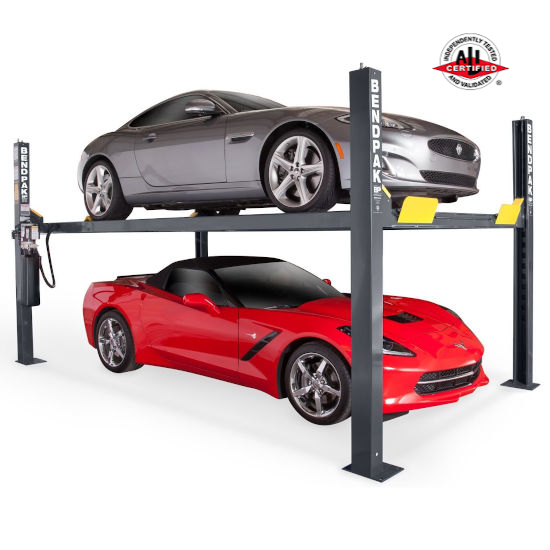

BendPak HD-9STX is our tall and narrow four-post lift that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.
More Height in Less Floor Space
The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service—in the shop or garages with high ceilings. Whether you're a service professional or a DIY'er, BendPak’s got the right lift for you. This model is available with optional casters, drip-trays, jack platform and more.
With more height to work with, this lift does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise lift also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on high-rise car lift.
The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When you’re uncomfortable, you’re more likely to make mistakes, and there’s nothing better than a car lift that lifts to the perfect height. The HD-9STX maximizes versatility in a car lift that adapts to your height and lifestyle. The narrow designs fits in the same floor space as the HD-9ST but requires a bit more ceiling height to fully enjoy.
Click links below for more info:
HD-9STX 4 Post Narrow Width Parking Lift Manual
HD-9STX 4 Post Narrow Width Parking Lift Brochure
HD-9STX 4 Post Narrow Width Parking Lift Warranty
Specifications HD-9STX
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- Narrow-width
- High-rise
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Specifications HD-9STX
Lifting Capacity: 9,000 lbs.
Minimum Runway Height: 5"
Maximum Lifting Height: 86.5"
Time to Full Rise: 50 seconds
Width Between Columns: 89.75"
Drive-Thru Clearance: 76.5"
Width Between Runways: 37.5"
Outside Edge of Runways: 75.5"
Shipping Dimensions: 190" X 22" X 41"
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
