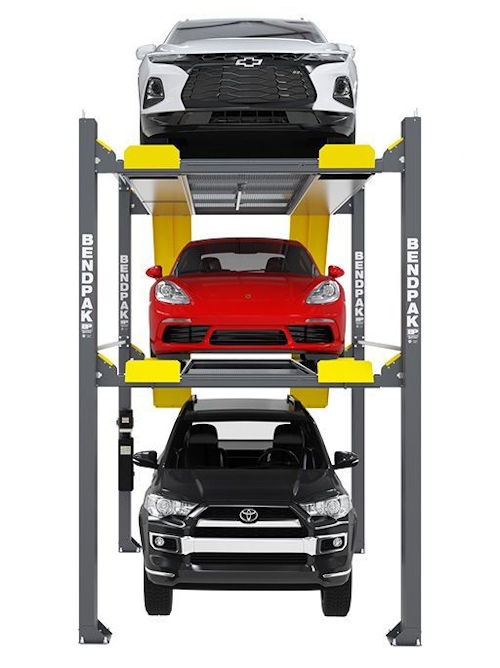

Supersize your parking capacity with this revolutionary tri-level parking lift from BendPak! This unique four-post parking lift design parks up to three vehicles in one space, instantly tripling your parking capacity. With an extended length and taller rise compared to the HD-973P, the HD-973PX has even more room for your longest and boxiest vehicles.
The longer, higher triple decker
The tri-level HD-973PX is a four-post parking lift that maximizes your parking capacity without adding any additional real estate. Each HD-973PX houses up to three vehicles on strengthened parking platforms to give you the most space for your buck. With an additional 84” of overall height compared to the HD-973Pparking lift, the HD-973PX supports some of the biggest vehicles around! This extra height, along with the additional 10” of runway length, gives you the perfect amount of space to fit longer and taller vehicles, while maintaining a height that will fit comfortably in most shops and garages. With the topmost platform’s weight capacity sitting at a hefty 7,000 lbs. and the lower deck handling up to 9,000 lbs., the HD-973PX is ideal for lifting even heavy-duty vehicles like full-size trucks and SUVs.
This rugged design is ready for installation indoors or outdoors, instantly tripling your parking and storing capability. The easy-to-use top-of-the-line design ensures that your vehicles are being lifted safely, and efficiently. Which saves you time, and worry. The safety features that come standard with any BendPak lift make sure your cars stay in the air until YOU move them, and intuitive design cycles through the cars at the push of a button. With the HD-973PX you’re getting a lift that can not only park your taller and longer vehicles but fits comfortably and safely wherever you need it most.
Proprietary design
Shortened height columns allow this car lift to fit in low ceiling spaces where other systems can’t. Although shorter in stature than most tri-level systems, the lower space still yields a full 70 inches of rise.
Independent platforms
Typical multi-level car stackers include a bottom platform that is suspended from the upper platform via chains or cables—both platforms move simultaneously. This tethered operation results in limited spacing options between platforms, as the distance between platforms is fixed.
The HD-973PX features independently operated lifting platforms, permitting varied vehicle heights and spacing in either upper or lower parking spaces. Because the platforms do not have to move in unison with one another, you can now lower the bottom platform without disrupting the overhead vehicle being stored. This allows operators to control one platform at a time. Practically speaking, if you only want to swap out the second-level vehicle, you don't have to lower the top-level vehicle.
Unmatched protection
The patent-pending design of the HD-973PX features multi-position safety locks that are spaced just four inches apart. This allows almost unlimited parking height arrangements on either the upper or lower decks. Redundant, anti-fall, spring-loaded safety catches immediately halt downward movement of either platform in the unlikely event of cable failure.
Hydraulic power
A powerful hydraulic cylinder is enclosed underside each platform set and is matched with high strength lifting cables for simplicity and dependability. The lift can be configured for drive-thru operation, allowing as many as three deep for maximum efficiency and better use of space.
Smarter construction means less cost to you
High-rise parking lifts that can fit three vehicles will inevitably cost more than other lifts. There's simply more steel involved, and larger lifts require additional engineering, all of which gets incorporated in the cost. The HD-973PX offsets much of that extra cost because its smart design requires less steel. The end result is an incredibly efficient parking lift that actually saves buyers thousands of dollars while upholding the industry's most rigid safety standards.
Weight-displacing base
Specially designed base frames distribute the load, which makes this unique lifting system suitable for installation on virtually any residential or commercial concrete floor. It can even be installed on asphalt when equipped with concrete footers. The HD-973PX may be configured as a stand-alone lift or combined into rows of multiple units.
Who should get this parking lift?
Explore the HD-973PX if you need to stack three vehicles in a tight space, or if you want the versatility to vary the parking heights of your second and third-level vehicles. The lift's small footprint and exemplary design makes for an ideal lifting solution in both professional shops and home garages.
Click links below for more info:
HD-973PX Parking Lift Brochure
HDS-973PX Parking Lift Manual
HDS-973PX Parking Lift Warranty
Specifications HD-973PX
- Extended length, high rise
- Perfect for parking, storage and service
- 7,000 lb. capacity upper deck
- 9,000 lb. capacity lower deck
- Superstructure features durable powder coat finish
- Perfect for cars, trucks, and SUVs
- Platforms feature full-length aluminum decking
- Rugged welded-steel construction
- Powerful hydraulic cylinders
- Heavy-duty 3/8” lifting cable
- Heavy-duty steel construction
- Wide base-plate for maximum stability
- Heavy-duty steel construction
- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
- Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
- Reliable electric-hydraulic power system
- Multi-position safety locks in each column
- Automatic safety locks combined with redundant anti-fall devices
- Adjustable lock ladders
- Independent backup slack-cable safety latches
- Push-button pneumatic safety release.
- Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
- Simple controls
- Optional drive-thru ramps available
- Optional 4,500-lb. air-hydraulic rolling jacks available
Style: Multi-Level Parking Lift
Top Platform
Lifting Capacity:7,000 lbs.
*Max Capacity / Front Axle: 3,500 lbs
*Max Capacity / Rear Axle: 3,500 lbs

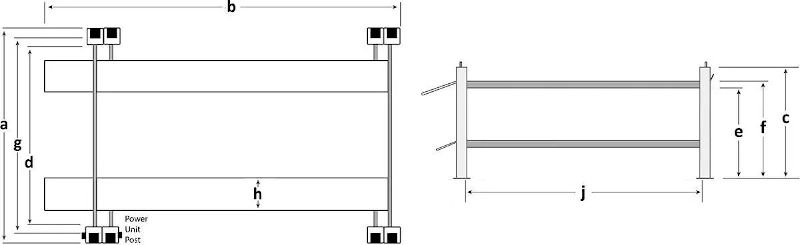

A: Overall Width: 110.5"
B: Overall Length: 252.5"
C: Height of Columns: 169.75"
D: Drive-Thru Clearance: 86.5"
E. Maximum Rise: 151.5"
F: Maximum Lifting Height: 156"
G: Distance Between Columns: 100"
H: Runway Width: 19"
I: Width Between Runways: 35" or 41"
J: Runway Length: 208.5"
Min. Wheelbase @ Rated Capacity1: 140"
Min. Wheelbase @ 75% Capacity1: 120"
Min. Wheelbase @ 50% Capacity1: 100"
Min. Wheelbase @ 25% Capacity1: 80"
Locking Positions: 34
Lock Spacing: Every 4"
Lifting Time to Max. Rise: 90 seconds
Motor: 220 VAC / 60 Hz / 1 Ph
Bottom Platform
Lifting Capacity: 9,000 lbs.
*Max Capacity / Front Axle: 4,500 lbs.
*Max Capacity / Rear Axle: 4,500 lbs.
A: Overall Width: 110.5"
B: Overall Length: 252.25"
C: Height of Columns: 169.75"
D: Drive-Thru Clearance: 86.5"
E. Maximum Rise: 82"
F: Maximum Lifting Height: 84.5"
G: Distance Between Columns: 100"
H: Runway Width: 19"
I: Width Between Runways: 35" or 41"
J: Runway Length: 208.5"
Min. Wheelbase @ Rated Capacity1: 135"
Min. Wheelbase @ 75% Capacity1: 115"
Min. Wheelbase @ 50% Capacity1: 95"
Min. Wheelbase @ 25% Capacity1: 75"
Locking Positions: 16
Lock Spacing: Every 4"
Lifting Time to Max. Rise: 50 seconds
Motor: 220 VAC / 60 Hz / 1 Ph
Shipping Weight: 5,932 lbs.
1The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95" is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).
Note: A minimum air pressure of 75 PSI / 3 CFM is required required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
