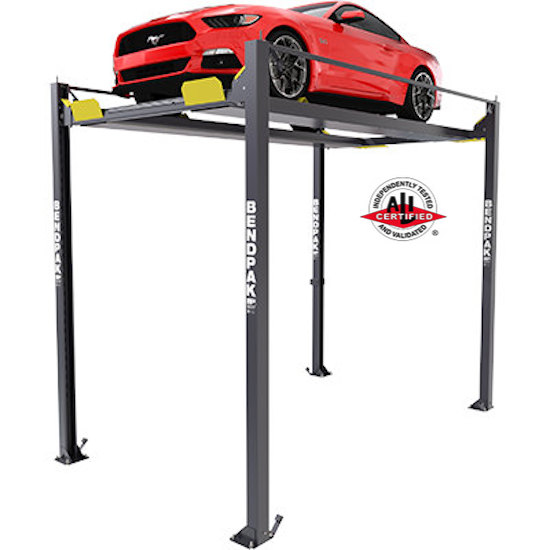

The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform and will effortlessly lift up to 7,000 lbs. over 12 feet into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!
Amazingly Tall Four-Post Lift
The HD-7PXW four-post lift has a 7,000-lb. lift capacity and 182" long runways to accommodate a variety of vehicle types and wheelbases.
Same great benefits as other lifts
The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching car lift on the market than the HD-7PXW.
Click links below for more info:
HD-7PXW 4 Post Parking Lift Manual
HD-7PXW 4 Post Lift Brochure
HD-7PXW 4 Post Parking Lift Warranty
Critical Clearance Dimensions With Lift Parked On Locks
Specifications HD-7PXW
- 7,000-lb. maximum lifting capacity
- Super tall rise delivers 12-feet of lifting height
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8” aircraft cable
- Rugged 1.25” roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Specifications HD-7PXW
Capacity
Lifting Capacity*: 7,000 lbs.
*Max Capacity / Front Axle: 3,500 lbs.
*Max Capacity / Rear Axle: 3,500 lbs.
Rise
A - Min. Runway Height: 5"
C - Max. Lifting Height: 145.25"
Time to Full Rise: 50 seconds
Outside Dimensions
D - Overall Width: 110.25"
F - Overall Length (includes ramps): 213"
G - Height of Columns: 158"
Top Lock Height: 143.82 in"
Inside Dimensions
H - Width Between Columns: 100.25"
I - Drive-Thru Clearance: 86.5"
Runways
K - Length of Runways: 182.25"
L - Width Between Runways: 35" or 41"
M - Runway Centerline: 57" or 63"
N - Outside Edge of Runways: 75.75" or 82"
Power Unit
Motor: 208-230 VAC / 50-60 Hz / 1Ph
Shipping
Dimensions: 192'' x 22'' x 31''
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
