From heavy-duty fleet service to airport maintenance and emergency vehicle management, BendPak’s 16AP and 20AP Series tackles them all. With plentiful 16,000- and 20,000-pound lifting capacities combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, our Super-Duty AP Series makes an ideal supplement to existing fleet operations.
With oversize dimensions and capabilities that go well beyond those typically found on traditional two post lifts, they lift more, lift higher, reach farther, and realize more vehicle-supporting stability than ever before. And with fewer moving parts, they’re less susceptible to wear and tear, easier to maintain and less expensive to operate. And that all adds up to a cost-savings advantage you’ll appreciate regardless of your environment. More uptime means more free time. From accommodating large commercial trucks safer than ever before and lifting and supporting long awkward vehicles effortlessly, our Super-Duty AP Series handles heavy fleet tasks very comfortably. The key? Graciously spaced columns make for easier entry and exit and ruggedly built far reaching arms increase lifting point coverage delivering greater stability. Ergonomic operator controls allow for simple and safe operation, a benefit that boosts productivity resulting in higher output and greater profitability.
Rugged Enough to Stand Up to Anything
Every Super-Duty AP Series lift delivers the no-compromise construction, durability, and other advantages that only the industry’s number one lift manufacturer can provide. Including the highest consumer confidence and safety rating, longest warranty, lowest cost of ownership and superior ergonomics that make your operators more productive and your operation more profitable. Bottom line, BendPak lifts are designed better, built better, and supported better than any other vehicle service lift in the world. Which explains why BendPak makes and sells more lifts than anyone. And why they also maintain the industry’s highest resale value.
High-Strength Multi-Face Columns
Our revolutionary multi-face metal columns redefine strength and durability, especially under biaxial loading conditions. Unlike traditional single-formed columns, our innovative design incorporates multiple faces, strategically engineered to distribute loads more efficiently. This unique configuration enhances the structural rigidity and integrity of the columns, enabling them to withstand higher levels of stress and strain from varying directions simultaneously. By evenly dispersing forces during biaxial loading conditions, our multi-face columns provide unparalleled stability and resilience, ensuring optimal performance even in the most demanding environments, making them the ideal choice for any lifting application.
The BendPak Warranty and After-Sale Support Advantage
Facility administrations rely heavily on asset management with a primary focus on equipment maintenance, equipment activity and equipment history. Fleet service equipment assumes greater importance than almost any other facility asset. Significant disruptions, long lead times for repairs or replacement parts can cripple an operation. Equipment dependability is paramount. Every Super-Duty AP Series lift is perfectly engineered with a heavy focus on reliability. Combine that with BendPak’s unparalleled dealer and after-sale support and you have the perfect service lift to help bolster your equipment criticality matrix. Our award-winning Certified Service™ program is how we keep customers smiling long after the sale. When the unexpected happens, our Certified Service advantage encompasses a broad spectrum of services, competencies, processes, and tools to assure that your lift performs precisely for the job it was designed and constructed. At BendPak, we understand that it is the support and services we provide after the sale that helps keep your business running at peak efficiency.
Click links below for more info:
16AP-192 2 Post Lift Brochure
16AP-192 2 Post Lift Manual
16AP-192 2 Post Lift Warranty
Specifications 16AP-192
Comes standard with a 12-piece set of lifting adapters to accommodate virtually every chassis configuration, including (4) frame cradle pads, (4) medium stacking adapters and (4) tall stacking adapters.
Convenient Storage is included for lifting adapters.
Dual direct-drive hydraulic cylinders
Electric-hydraulic power system with ergonomic push-button controls.
Simple operation, long service life and minimum maintenance.
Lift dampener lowering control for softer descents.
Padded overhead safety shutoff bar.
Failsafe mechanical equalization system.
Safety locks in each column spaced every 4”.
Extended height top-beam provides greater clearance.
Multi-face metal columns redefine strength and durability, especially under biaxial loading conditions.
Each ultra-tall lifting carriage features eight UHMW load bearings to evenly disperse both radial and axial load forces throughout all lifting and lowering operations.
Multi-adjustable telescoping arms accommodate a wide variety of vehicle chassis.
Redundant, failsafe safety-lock mechanisms on each column reliably secure and always hold the lifting carriages and arm assemblies during operation.
Full-perimeter 360-degree arm restraints stand alert at all times and keep the arms from moving when loaded.
Durable powder-coat finish.

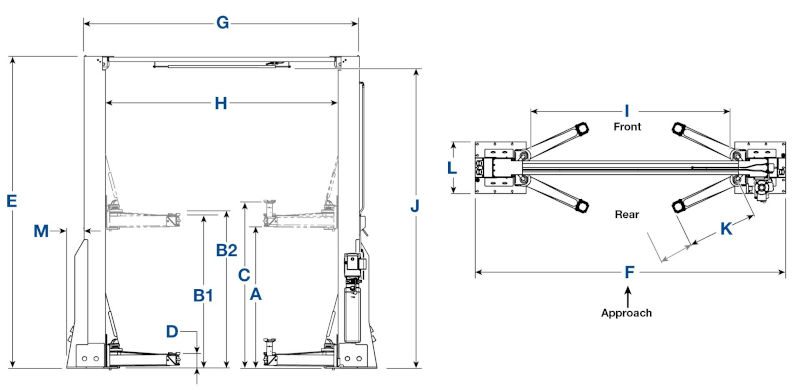

Diagram 16AP-192
Lifting capacity: 16,000 lbs.
A Max. Rise: 75.75"
B. Lifting Height with Pad Down: 78.50"
C. Max Lifting Height with Pad Up: 82.50"
D. Min Height + Pad: 4"
E. Height Overall: 193"
F. Width Overall: 156"
G. Width, Outside Posts: 143"
H. Width, Inside Posts: 120"
I. Width, Drive-Thru: 103"
J. Floor to Top Switch: 186.5"
K. Front arm reach: 36" to 65"
L. Rear Arm Reach: 36" to 65"
Max Load Per Lift Arm: 4,000 lbs.
Pad Adapters Total Height: 7.5"
Time to Full Rise: =45 seconds
Motor: 220 VAC, 60 Hz, 1 Phase
Sound: <70 dB
