NEED A 8000LB CAPACITY STORAGE LIFT?

WE HAVE 10 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.

WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.

CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!

**1 YEAR WARRANTY**

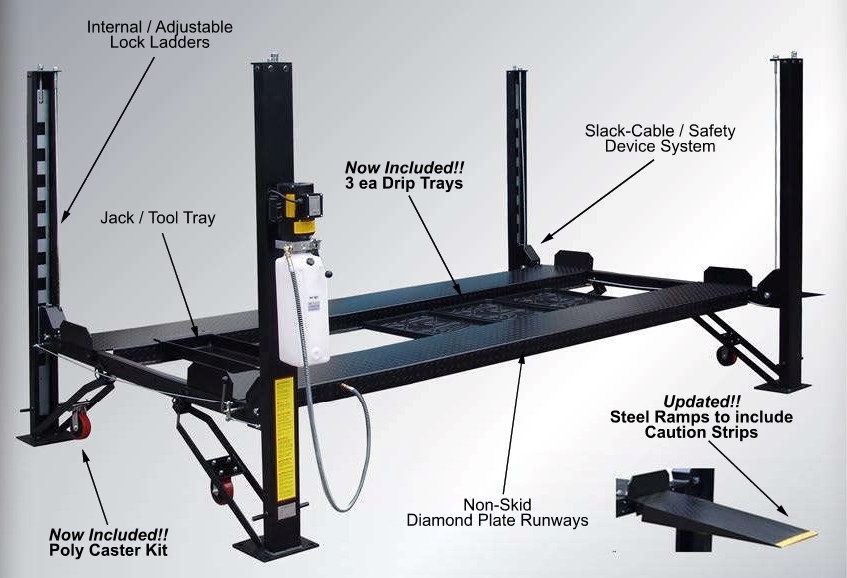

Features

• 8,000 lbs.capacity
• High Quality Service/Storage Lifts
• Slack-Cable/Safety Device System
• Internal Lock Ladder design
• Non-Skid Diamond Plate Runways
• Adjustable Lock Ladder leveling
• Single Point, Manual Lock release
• Powdercoat finish
• Steel approach ramps
• Extended Runway Length & Drive-Thru Width
• Extended Runway Clearance & Lifting Height
• Poly Caster Kit Included
• 3 Drip Trays Included
• Jack/Tool Tray Included

Specifications

• Lifting Capacity: 8,000lbs
• Lifting Height: 82.3"
• Overall Length w/Ramps: 225.5"
• Overall Length w/No Ramps: 190.7"
• Overall Width: 109.4"
• Runway Tread Width: 18.7"
• Runway Length: 180.5"
• Runway Height: 4.3"
• Column Height: 94"
• Clearance between Columns: 100.3"
• Clearance between Runways: 42.2"
• Outside Runway to Outside Runway: 80.7"
• Clearance Under Runways: 78"
• Drive Thru Width: 87.2"
• Locking Positions: 12
• Base Plate Size: 10" x 12"
• Power: 110V-15amp /1PH
• Ship Weight: 1805lbs
