**1 YEAR WARRANTY**

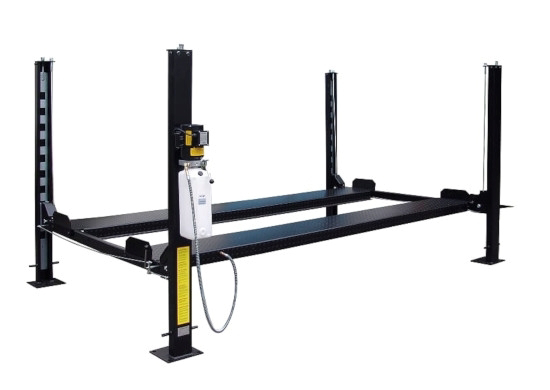

Features

• 8,000 lbs.capacity
• High Quality Service/Storage Lifts
• Slack-Cable/Safety Device System
• Internal Lock Ladder design
• Non-Skid Diamond Plate Runways
• Adjustable Lock Ladder leveling
• Single Point, Manual Lock release
• Powdercoat finish
• Steel approach ramps

Specifications

• Lifting Capacity: 8,000lbs
• Lifting Height: 74.8"
• Overall Length w/Ramps: 207.3"
• Overall Length w/No Ramps: 175.5"
• Overall Width: 103.5"
• Runway Tread Width: 18.7"
• Runway Length: 165.5"
• Runway Height: 4.3"
• Column Height: 86"
• Clearance between Columns: 94.4"
• Clearance between Runways: 37.2"
• Outside Runway to Outside Runway: 74.8"
• Clearance Under Runways: 70"
• Drive Thru Width: 80"
• Locking Positions: 10
• Base Plate Size: 10" x 12"
• Power: 110V-15amp /1PH
• Ship Weight: 1695lbs
