With the same weight capacity as the PRO-30 but with a runway length of 315”, this lift can fit the longer vehicles for work purposes. Features skid-proof diamond-plated platform.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 30,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
Click links below for more info:
PRO-30E 4 Post Lift Manual
PRO-30E 4 Post Lift Brochure
Specifications
Model: PRO-30E
Lifting Time: 130s

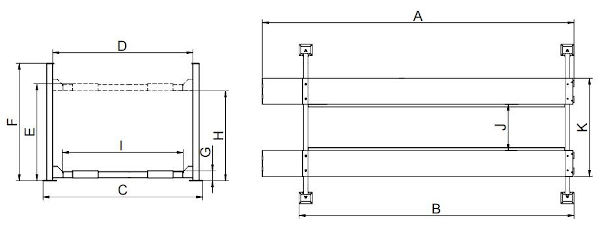

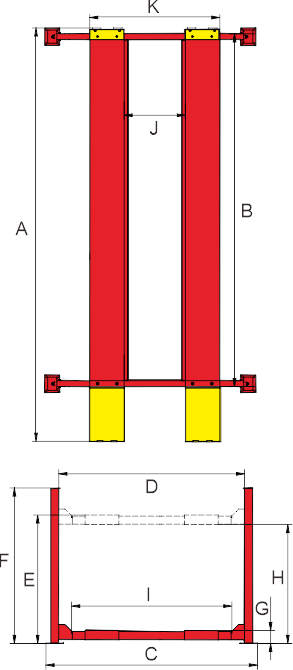

A: Overall Length (Inc. Ramps): 366 1/8″
B: Overall Length (No. Ramps): 315 1/2″
C: Overall Width: 149 3/8″
D: Width Between Columns: 131 3/4″
E: Max. Lifting Height: 74 3/4″
F: Overall Height: 91 7/8″
G: Minimum Height: 10 1/2″
H: Max. Underneath Height: 65 7/8″
I: Drive-Thru Clearance: 117 3/4″
J: Width Between Runways: 54 3/4″
K: Outside Edge of Runways: 102 3/4″
Gross Weight: 6,623 lbs
Motor: 2.0HP, 220V/60Hz Single Phase
