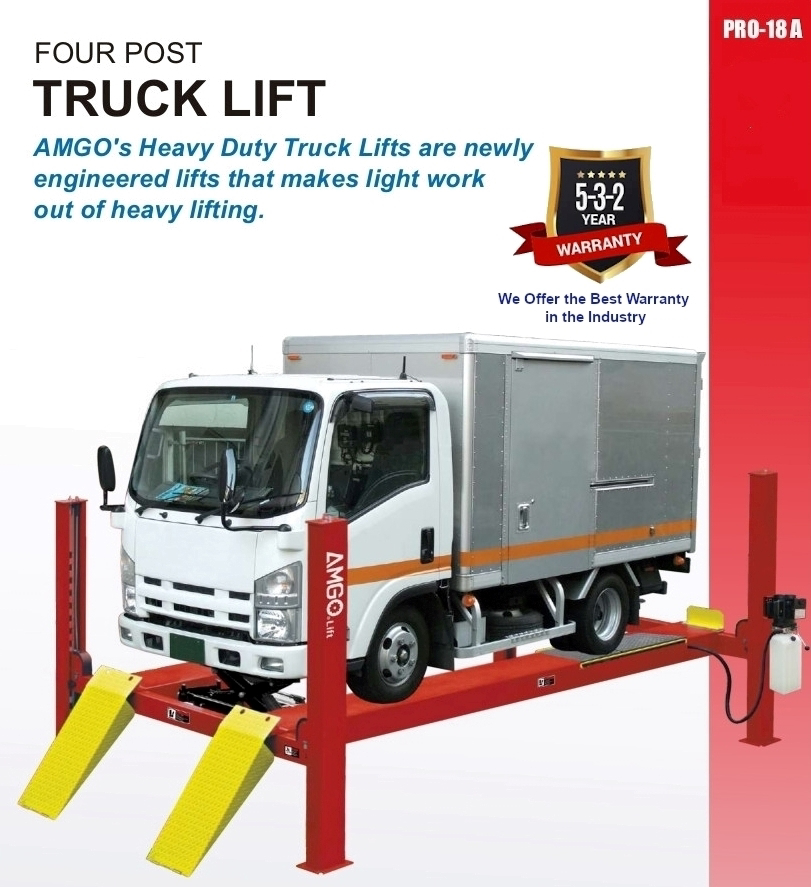

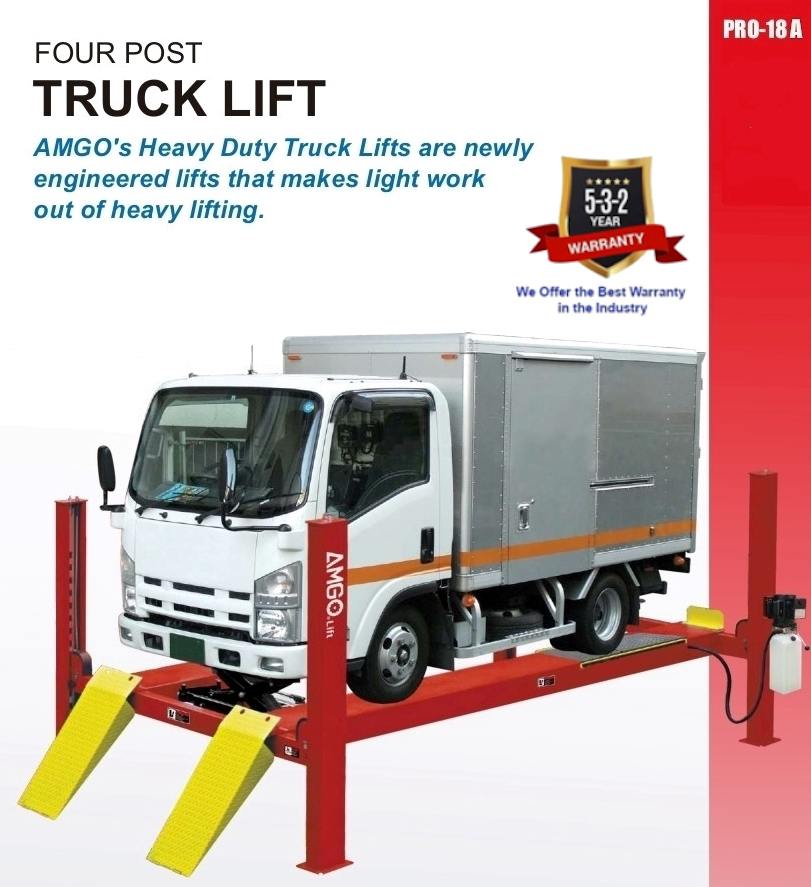

The PRO-18A is has great features with a high capacity for alignment work performed on your vehicles. Features mechanical self-lock and cable-breaking protection. 1/2″ aircraft quality cable.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• Turn plates are not standard. Must be purchased separately
• 18,000 lbs capacity
• Mechanical self-locking safety device with air-driven lock release
• Standard primary multiple safety locks and cable-slack protection system
• Cable-driven with aircraft-standard high-quality cables
• Hydraulic cylinder features high quality oil seals and compensation valve
• Non-skid diamond platforms
• Stepless adjustable width between platforms
• Integrated slip plates and adjustable turnplate pockets
• AMGO ETL certified power unit
Click links below for more info:
PRO-18A 4 Post Lift Manual
PRO-18A 4 Post Lift Brochure
Specifications
Model: PRO-18A
Style: Alignment
Lifting Capacity: 18,000 lbs
Lifting Time: 81S

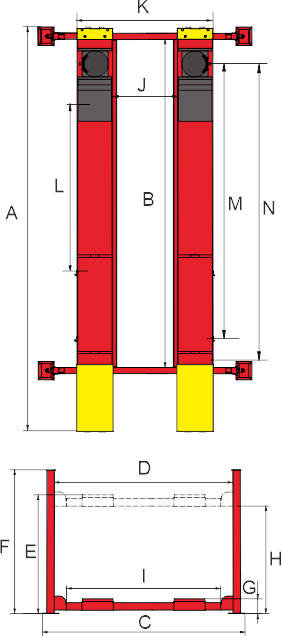

A: Overall Length (Inc. Ramps): 292 3/4″
B: Overall Length (No Ramps): 252 1/4″
C: Overall Width: 137 1/16″
D: Width Between Columns: 122 3/8″
E: Max. Lifting Height: 77 3/16″
E: Max. Lock Height to Top of Runway: 74″
F: Overall Height: 86 3/16″
G: Minimum Height: 9 7/8″
H: Max. Underneath Height: 68 1/2″
H: Max. Lock Underneath Runway: 65 3/8″
I: Drive-Thru Clearance: 108 1/4″
J: Width Between Runways: 51 1/4″
J: Width Between Runways (Min.): 3 3/8″
J: Width Between Runways (Max.): 57 13/16″
K: Outside Edge of Runways: 95 3/16″
K: Outside Edge of Runways: (Min.): 43 3/8″
K: Outside Edge of Runways (Max.): 101 3/4″
L: Min. Four Wheel Align: 99 5/8″
M: Max. Four Wheel Align: 182 11/16″
N: Max. Two Wheel Align: 209 1/16″
Gross Weight: 4,429 lbs
Motor: 2.0HP
Optional Accessories

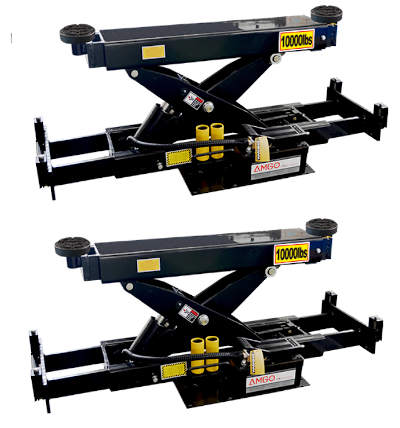

Rolling Jacks

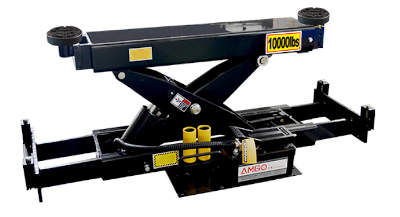

- RJ-10A: pneumatic hydraulic type 10,000lbs
Turntable Kit: 40101
Turntable Adjustment Blocks: 41803
Led lights: No. 40103
Extension Platform: No. 41801
Air line kit: No. 40102
