4 Post Lift 18000lb PRO-18 Amgo Hydraulics

PRO-18


SKU: PRO-18
Manufacturer part number: PRO-18
Manufacturer: AMGO Hydraulics
$7,795.00

Amgo warranty

The PRO-18 is perfect for your heavy-duty commercial services. The newly engineered PRO-18 four post lift is stronger, more versatile, and easier to use than most other lifts. Capable of lifting up to 18,000 lbs.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 18,000 lbs capacity
•  Mechanical self-locking safety device with air-driven lock release
•  Standard primary multiple safety locks and cable-slack protection system
•  Cable-driven with aircraft standard high-quality cables.
•  Hydraulic cylinder features high quality oil seals and compensation valve
•  Non-skid diamond platforms
•  Stepless adjustable width between platforms
•  AMGO ETL certified power unit


 Click links below for more info:

PRO-18 4 Post Lift Manual

PRO-18 4 Post Lift Brochure


Specifications

Model:     PRO-18
Style:     Non-Alignment
Lifting Capacity:     18,000 lbs
Lifting Time:     81S

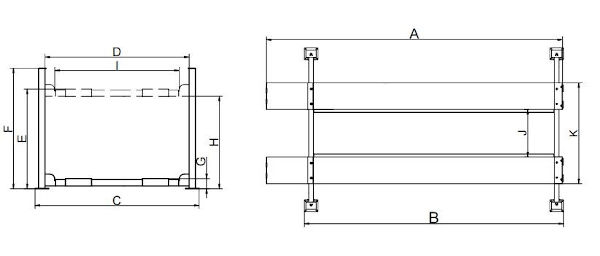

A: Overall Length (Inc.Ramps):     293 1/4″
B: Overall Length (No.Ramps):     252 1/4″
C: Overall Width:     137 1/16″
D: Width Between Columns:     122 3/8″
E: Max. Lifting Height:     75 3/16″
E: Max. Lock Height to Top of Runway:     72″
F: Overall Height:     86 3/16″
G: Minimum Height:     7 7/8″
H: Max. Underneath Height:     68 1/2″
H: Max. Lock Underneath Runway:     65 3/8″
I: Drive-Thru Clearance:     108 1/4″
J: Width Between Runways:     51 1/4″
J: Width Between Runways (Min.):     3 3/8″
J: Width Between Runways (Max.):     57 13/16″
K: Outside Edge of Runways:     95 1/4″
K: Outside Edge of Runways (Min.):     43 3/8″
K: Outside Edge of Runways (Max.):     101 3/4″
Gross Weight:     3,483lbs
Motor:     2.0HP

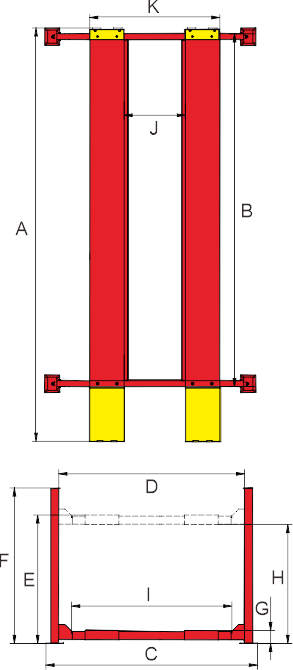

PRO 18 4 post lift specifications

Amgo warranty

The PRO-18 is perfect for your heavy-duty commercial services. The newly engineered PRO-18 four post lift is stronger, more versatile, and easier to use than most other lifts. Capable of lifting up to 18,000 lbs.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 18,000 lbs capacity
•  Mechanical self-locking safety device with air-driven lock release
•  Standard primary multiple safety locks and cable-slack protection system
•  Cable-driven with aircraft standard high-quality cables.
•  Hydraulic cylinder features high quality oil seals and compensation valve
•  Non-skid diamond platforms
•  Stepless adjustable width between platforms
•  AMGO ETL certified power unit


 Click links below for more info:

PRO-18 4 Post Lift Manual

PRO-18 4 Post Lift Brochure


Specifications

Model:     PRO-18
Style:     Non-Alignment
Lifting Capacity:     18,000 lbs
Lifting Time:     81S
A: Overall Length (Inc.Ramps):     293 1/4″
B: Overall Length (No.Ramps):     252 1/4″
C: Overall Width:     137 1/16″
D: Width Between Columns:     122 3/8″
E: Max. Lifting Height:     75 3/16″
E: Max. Lock Height to Top of Runway:     72″
F: Overall Height:     86 3/16″
G: Minimum Height:     7 7/8″
H: Max. Underneath Height:     68 1/2″
H: Max. Lock Underneath Runway:     65 3/8″
I: Drive-Thru Clearance:     108 1/4″
J: Width Between Runways:     51 1/4″
J: Width Between Runways (Min.):     3 3/8″
J: Width Between Runways (Max.):     57 13/16″
K: Outside Edge of Runways:     95 1/4″
K: Outside Edge of Runways (Min.):     43 3/8″
K: Outside Edge of Runways (Max.):     101 3/4″
Gross Weight:     3,483lbs
Motor:     2.0HP

PRO 18 4 post lift specifications
