4 Post Lift 14000lb PRO-14 Amgo Hydraulics

PRO-14


SKU: PRO-14
Manufacturer part number: PRO-14
Manufacturer: AMGO Hydraulics
$5,995.00

Amgo warrantyThe PRO-14 4 post lift features 14,000 lbs of lifting capacity and is built to commercial-grade standards. This lift will provide many years of service. Features air-released safety lock for convenient operation and reliability.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and manufactured to high quality standards
• Adjustable lifting platform - adjust mounting position left or right, as needed. The standard distance between two platforms is 47" and maximum distance is 54 1/2."
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed


 Click links below for more info:

PRO-14 4 Post Lift Manual

PRO-14 4 Post Lift Brochure


Specifications

Model:     PRO-14
Style:     Non-Alignment
Lifting Capacity:     14,000 lbs
Lifting Time:     76S

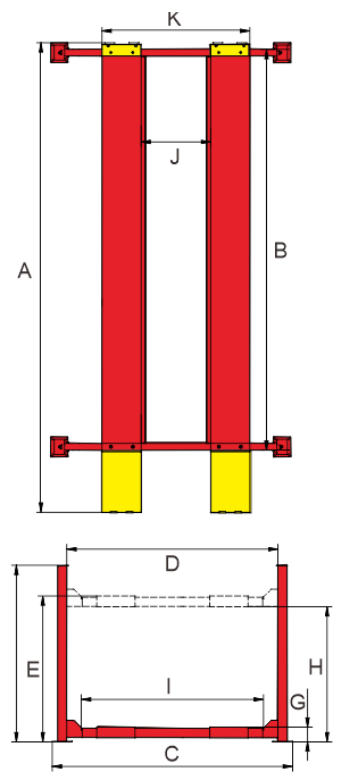

A: Overall Length (Inc.Ramps):     257 1/2″
B: Overall Length (No.Ramps):     216 1/2″
C: Overall Width:     130 7/8″
D: Width Between Columns:     116″
E: Max. Lifting Height:     73 1/2″
F: Overall Height:     86″
G: Minimum Height:     7 7/8″
H: Max. Underneath Height:     66 3/4″
I: Drive-Thru Clearance:     102 1/8″
J: Width Between Runways:     47″, Max. 54 1/2″
K: Outside Edge of Runways:     87″, Max. 94 1/2″
Gross Weight:     2,791lbs
Motor:     2.0HP, 220V/60Hz Single Phase

PRO 14 4 post lift specs storage lift parking lift


Optional Accessories

Rolling Jacks:

  • J6H 6,000lbs manual control
  • J6A 6,000lbs pneumatic pump

Led lights: No. 40103
Extension kit: No. 40901
Air line kit: No. 40102

Amgo warrantyThe PRO-14 4 post lift features 14,000 lbs of lifting capacity and is built to commercial-grade standards. This lift will provide many years of service. Features air-released safety lock for convenient operation and reliability.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and manufactured to high quality standards
• Adjustable lifting platform - adjust mounting position left or right, as needed. The standard distance between two platforms is 47" and maximum distance is 54 1/2."
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed


 Click links below for more info:

PRO-14 4 Post Lift Manual

PRO-14 4 Post Lift Brochure


Specifications

Model:     PRO-14
Style:     Non-Alignment
Lifting Capacity:     14,000 lbs
Lifting Time:     76S
A: Overall Length (Inc.Ramps):     257 1/2″
B: Overall Length (No.Ramps):     216 1/2″
C: Overall Width:     130 7/8″
D: Width Between Columns:     116″
E: Max. Lifting Height:     73 1/2″
F: Overall Height:     86″
G: Minimum Height:     7 7/8″
H: Max. Underneath Height:     66 3/4″
I: Drive-Thru Clearance:     102 1/8″
J: Width Between Runways:     47″, Max. 54 1/2″
K: Outside Edge of Runways:     87″, Max. 94 1/2″
Gross Weight:     2,791lbs
Motor:     2.0HP, 220V/60Hz Single Phase

PRO 14 4 post lift specs storage lift parking lift


Optional Accessories

Rolling Jacks:

  • J6H 6,000lbs manual control
  • J6A 6,000lbs pneumatic pump

Led lights: No. 40103
Extension kit: No. 40901
Air line kit: No. 40102
