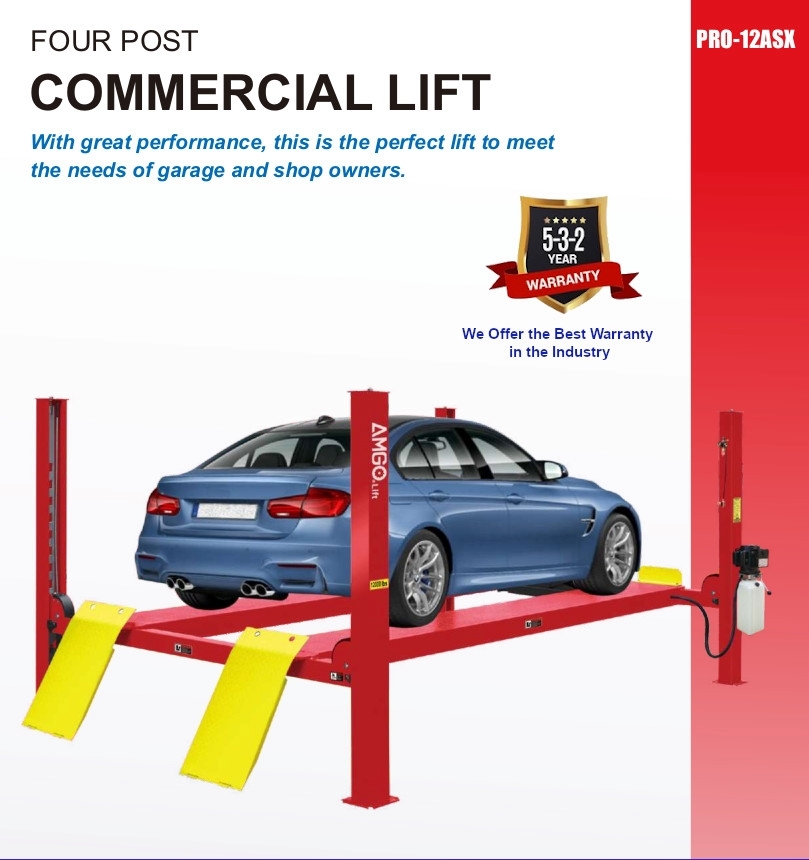

PRO-12ASX is perfect for alignment work on everyday vehicles. Features double safety locks to ensure you and your vehicle are always safe. Features 3/8″ aircraft quality cable.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 12,000 lbs capacity
• Mechanical self-locking safety device with air-driven lock release
• Includes both primary multiple safety locks and cable-slack protection system
• Cable-driven with aircraft standard high-quality cables
• High quality hydraulic cylinder with oil seals and compensation valve
• Non-skid diamond platforms
• Stepless adjustable width between platforms
• Integrated slip plates and adjustable turnplate pockets
• AMGO ETL certified power unit
Click links below for more info:
PRO-12ASX 4 Post Lift Manual
PRO-12ASX 4 Post Lift Brochure
Optional Accessories

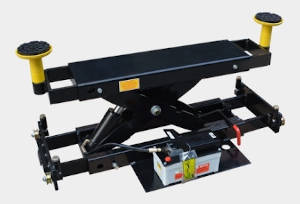

Rolling Jacks:
- J6H 6,000lbs manual control
- J6A 6,000lbs pneumatic pump
Turntable Kit: 40101
Turntable Adjustment Blocks: 40905
Led lights: No. 40103
Extension kit: No. 40901
Air line kit: No. 40102
Specifications
Model: PRO-12ASX
Style: Alignment
Lifting Capacity: 12,000 lbs
Lifting Time: 45S
A: Overall Length (Inc.Ramps): 232 5/8″
B: Overall Length (No.Ramps): 196 3/4″
C: Overall Width: 132 1/8″
D: Width Between Columns: 118 1/8″
E: Max. Lifting Height: 75 3/8″
F: Overall Height: 86″
G: Minimum Height: 8 5/8″
H: Max. Underneath Height: 67 7/8″
I: Drive-Thru Clearance: 104 1/8″
J: Width Between Runways: 43 1/4″, Max. 53 3/4″
K: Outside Edge of Runways: 83 1/4″, Max. 93 3/4″
L: Min. Four Wheel Align: 81 7/8″
M: Max. Four Wheel Align: 151 5/8″
N: Max. Two Wheel Align: 157 1/2″
Gross Weight: 2,798 lbs
Motor: 2.0HP, 220V/60Hz Single Phase
