The 12000lb capacity 4 post lift PRO-12A, provides wheel service maintenance with integrated rear slip plates and it also has adjustable turn table pockets to fit various wheelbases. Features air-released safety lock for convenient operation and reliability.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 12,000 lbs capacity
• Mechanical self-locking safety device with air-driven lock release
• Includes both primary multiple safety locks and cable-slack protection system
• Cable-driven with aircraft standard high-quality cables
• High quality hydraulic cylinder with oil seals and compensation valve
• Non-skid diamond platforms
• Stepless adjustable width between platforms
• Integrated slip plates and adjustable turnplate pockets
• AMGO ETL certified power unit
Click links below for more info:
PRO-12A 4 Post Lift Manual
PRO-12A 2 Post Lift Brochure
Optional Accessories
Rolling Jacks:
- J6H 6,000lbs manual control
- J6A 6,000lbs pneumatic pump
Turntable Kit: 40101
Turntable Adjustment Blocks: 40905
Led lights: No. 40103
Extension kit: No. 41203
Airline kit: No. 40102
Specifications
Model: PRO-12A
Style: Alignment
Lifting Capacity: 12,000 lbs
Lifting Time: 63S

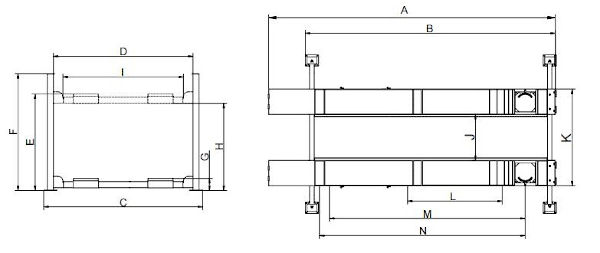

A: Overall Length (Inc.Ramps): 236 5/8″
B: Overall Length (No.Ramps): 200 3/4″
C: Overall Width: 126 1/4″
D: Width Between Columns: 112 1/4″
E: Max. Lifting Height: 75 3/8″
F: Overall Height: 86″
G: Minimum Height: 8 5/8″
H: Max. Underneath Height: 67 7/8″
I: Drive-Thru Clearance: 98 3/8″
J: Width Between Runways: 43 1/4″, Max. 51 1/8″
K: Outside Edge of Runways: 83 1/4″, Max. 91 1/8″
L: Min. Four Wheel Align: 78 3/4″
M: Max. Four Wheel Align: 155 7/8″
N: Max. Two Wheel Align: 161 3/8″
Gross Weight: 2,901 lbs
Motor: 2.0HP, 220V/60Hz Single Phase
