2 Post Lift Base Plate Lift 12000lb BP-12 Amgo Hydraulics

BP-12


SKU: BP-12
Manufacturer part number: BP-12
Manufacturer: AMGO Hydraulics
$4,795.00

Amgo warrantyAMGO BP Series 2 post lifts (Base plate) are rugged and versatile to operate. The BP-12 can lift vehicles up to 12,000 lbs. It is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO 2 post lifts are manufactured to high-quality standards, while using top materials and parts, with advanced features and innovative technology.


5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 12,000 lbs capacity, chain-driven 2 post lift with base plate. Designed for low ceiling professional and home garages with no obstructions and increased headroom
• Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety
• Super-symmetric arms provide versatility when choosing between asymmetric and symmetric positions -- no need for two different lifts! The (4) three-stage arms allow entry in and out of the vehicle when needed
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW polyethylene sliders and bronze bushings
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray allow for a clutter-free work space
• Stackable tube adapters (set of 4 ea.) 1.5″, 2.5″, 5″
• Anchor bolts and hardware included


 Click links below for more info:

BP-12 2 Post Lift Manual

BP-12 2 Post Lift Brochure


Specifications

  • Model     BP-12
  • Lifting Capacity     12,000 lbs
  • Lifting Time     65S
  • A: Max Lifting Height (without ext. adapter)   72 27/32"
        Max Lifting Height (with ext. adapter)   81 27/32″
        Max Lock Height (without ext. adapter) 70 1/2″
        Max Lock Height (with ext. adapter) 79 1/2″
  • B: Overall Height     122 1/2″
  • C: Overall Width     145 3/8″ | 150 3/4″
  • D: Drive-Thru Clearance     105 1/4″ | 110 5/8″
  • E: Width Between Columns     118 1/8″ | 123 1/2″
  • F: Minimum Pad Height     4 3/4”
  • Motor     2.0HP
  • Gross Weight     2,169 lbs

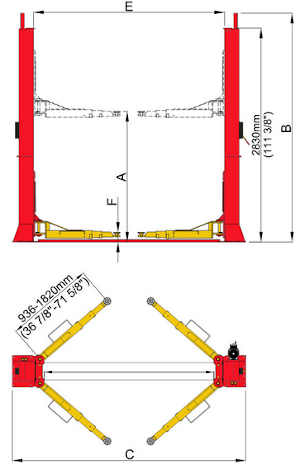

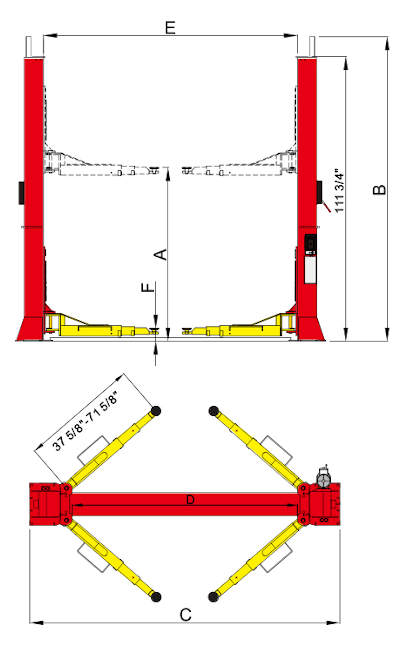

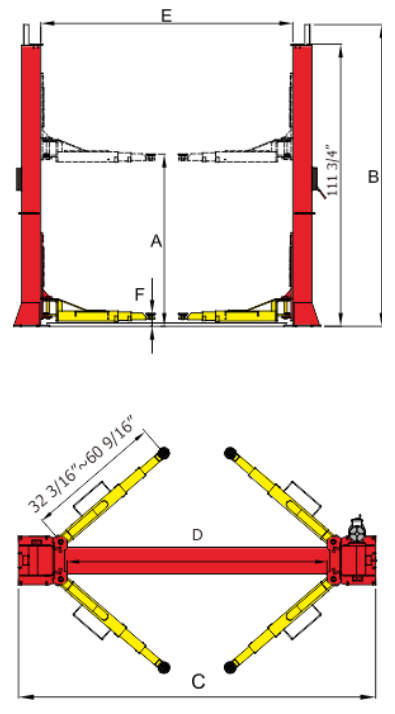

BP-12 Truck Lift Diagram

Amgo warrantyAMGO BP Series 2 post lifts (Base plate) are rugged and versatile to operate. The BP-12 can lift vehicles up to 12,000 lbs. It is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO 2 post lifts are manufactured to high-quality standards, while using top materials and parts, with advanced features and innovative technology.


5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 12,000 lbs capacity, chain-driven 2 post lift with base plate. Designed for low ceiling professional and home garages with no obstructions and increased headroom
• Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety
• Super-symmetric arms provide versatility when choosing between asymmetric and symmetric positions -- no need for two different lifts! The (4) three-stage arms allow entry in and out of the vehicle when needed
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW polyethylene sliders and bronze bushings
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray allow for a clutter-free work space
• Stackable tube adapters (set of 4 ea.) 1.5″, 2.5″, 5″
• Anchor bolts and hardware included


 Click links below for more info:

BP-12 2 Post Lift Manual

BP-12 2 Post Lift Brochure


Specifications

  • Model     BP-12
  • Lifting Capacity     12,000 lbs
  • Lifting Time     65S
  • A: Max Lifting Height (without ext. adapter)   72 27/32"
        Max Lifting Height (with ext. adapter)   81 27/32″
        Max Lock Height (without ext. adapter) 70 1/2″
        Max Lock Height (with ext. adapter) 79 1/2″
  • B: Overall Height     122 1/2″
  • C: Overall Width     145 3/8″ | 150 3/4″
  • D: Drive-Thru Clearance     105 1/4″ | 110 5/8″
  • E: Width Between Columns     118 1/8″ | 123 1/2″
  • F: Minimum Pad Height     4 3/4”
  • Motor     2.0HP
  • Gross Weight     2,169 lbs

BP-12 Truck Lift Diagram

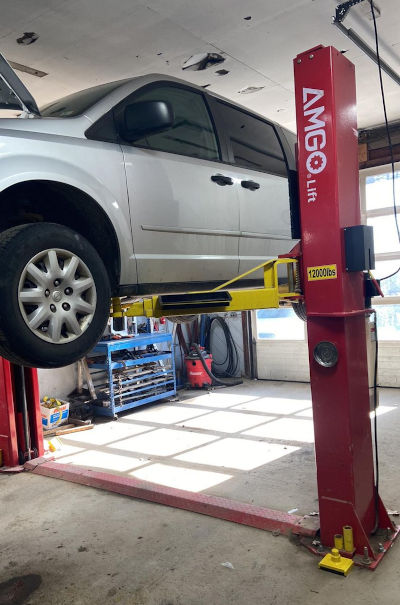

Gauthier Auto 2 Post Base Plate Lift 12K

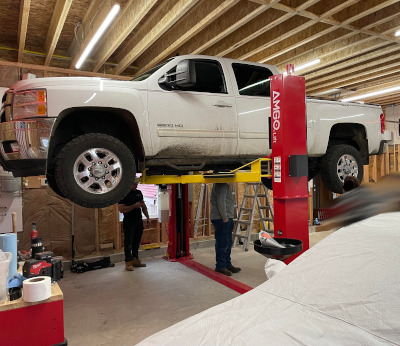

Chevy 2500 Pickup Truck 2 Post 12K lift

Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
Existing reviews
working great
It’s working great, thank you.
Bonnie, Alton, NH
From: vwracing81 | Date: 4/4/2021 8:00 PM
Was this review helpful? Yes No (0/0)
Lift is working great
The lift is working great. Thanks for asking.
-Rocky, Newport, NH
From: bbrspeed | Date: 3/22/2022 9:58 AM
Was this review helpful? Yes No (0/0)
Working great !
Working great ! Have yet to set up the one we just picked up.
-Kyle, Gauthier Auto Service
Jaffrey, NH
From: gauthierautoservice | Date: 5/10/2022 12:00 PM
Was this review helpful? Yes No (0/0)
Awesome, thank you again!! We love it.
-Matt, Branford, CT
From: mcanalo | Date: 9/11/2023 12:22 PM
Was this review helpful? Yes No (0/0)
