2 Post Heavy Duty Lift 18000lb OH-18 Amgo Hydraulics

OH-18


SKU: OH-18
Manufacturer part number: OH-18
Manufacturer: AMGO Hydraulics
$7,695.00

Amgo warranty

AMGO’s latest lift, model OH-18 boasts heavy-duty construction, offering immense lifting capacity up to 18000lbs. It features long, sturdy carriages for enhanced stability and is equipped with two types of rubber pads to suit many types of vehicles. Moreover, it incorporates AMGO’s 3 in 1 technology for effortless height setting.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

  • 18,000 Lbs capacity.
  • Clearfloor design, provide unobstructed floor space.
  • Overhead safety shut-off device.
  • Manual single-point safety release, unlock both columns from 1 side.
  • Automatic arms restraints.
  • Aero sync cables incorporate AMGO 3 in 1 technology.
  • Dual hydraulic direct-drived cylinders, designed and made on high standard, high quality seals for cylinder.
  • Standard two-stage rugged arms to ensure the heavy load stability.
  • Equipped with long, sturdy carriages for enhanced stablity.Both standard rubber pads and heavy duty saddle adapters come as standard.
  • Available with 3 heights settings.
  • Stackable tube adapters (set of 4 ea.) 1.5″, 2.5″, 5″
  • Anchor bolts and hardware included


 Click links below for more info:

OH-18 2 Post Lift Manual

OH-18 2 Post Lift Brochure


Specifications

  • Model     OH-18
  • Lifting Capacity     18,000 lbs
  • Lifting Time     84 S
  • A. Max Lifting Height w/o Extension Adapter     75 1/4″
        Max Lifting Height w/ Extension Adapter     81 1/4″
        Max Lock Height w/o Extension Adapter     73 5/16″
        Max Lock Height w/ Extension Adapter    82 5/16″
  • B. Overall Height (Low Setting)   174"
         Overall Height (Medium Setting)   186"
         Overall Height (High Setting)   198"
  • C. Overall Width   150 3/4″
  • D. Drive Thru Clearance     110 7/16″
  • E. Width Between Columns     123 1/2″
  • F. Minimum Pad Height     7 1/4″
  • Motor     4.0HP
  • Gross Weight     2,787 lbs

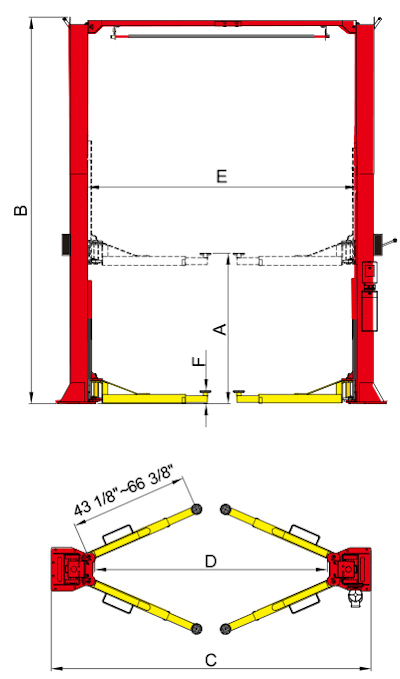

OH-18 2 Post Heavy Duty Lift Diagram Amgo

Amgo warranty

AMGO’s latest lift, model OH-18 boasts heavy-duty construction, offering immense lifting capacity up to 18000lbs. It features long, sturdy carriages for enhanced stability and is equipped with two types of rubber pads to suit many types of vehicles. Moreover, it incorporates AMGO’s 3 in 1 technology for effortless height setting.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

  • 18,000 Lbs capacity.
  • Clearfloor design, provide unobstructed floor space.
  • Overhead safety shut-off device.
  • Manual single-point safety release, unlock both columns from 1 side.
  • Automatic arms restraints.
  • Aero sync cables incorporate AMGO 3 in 1 technology.
  • Dual hydraulic direct-drived cylinders, designed and made on high standard, high quality seals for cylinder.
  • Standard two-stage rugged arms to ensure the heavy load stability.
  • Equipped with long, sturdy carriages for enhanced stablity.Both standard rubber pads and heavy duty saddle adapters come as standard.
  • Available with 3 heights settings.
  • Stackable tube adapters (set of 4 ea.) 1.5″, 2.5″, 5″
  • Anchor bolts and hardware included


 Click links below for more info:

OH-18 2 Post Lift Manual

OH-18 2 Post Lift Brochure


Specifications

  • Model     OH-18
  • Lifting Capacity     18,000 lbs
  • Lifting Time     84 S
  • A. Max Lifting Height w/o Extension Adapter     75 1/4″
        Max Lifting Height w/ Extension Adapter     81 1/4″
        Max Lock Height w/o Extension Adapter     73 5/16″
        Max Lock Height w/ Extension Adapter    82 5/16″
  • B. Overall Height (Low Setting)   174"
         Overall Height (Medium Setting)   186"
         Overall Height (High Setting)   198"
  • C. Overall Width   150 3/4″
  • D. Drive Thru Clearance     110 7/16″
  • E. Width Between Columns     123 1/2″
  • F. Minimum Pad Height     7 1/4″
  • Motor     4.0HP
  • Gross Weight     2,787 lbs

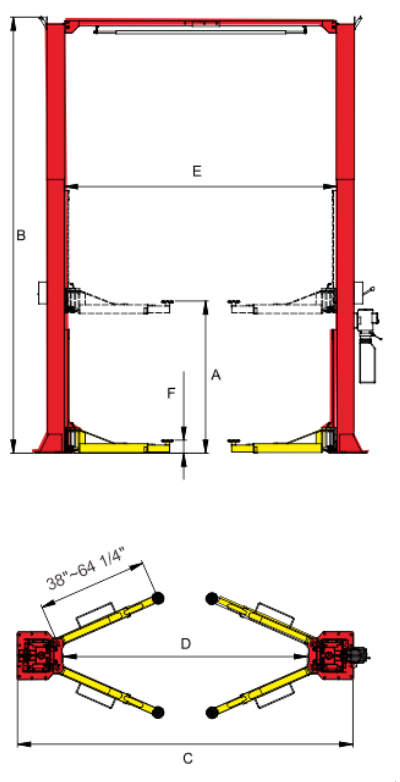

OH-18 2 Post Heavy Duty Lift Diagram Amgo
