OH-15 was developed by AMGO for heavy-duty purpose with a lifting capacity up to 15,000lbs. Heavy-duty construction, self-lubricating UHMW polyethylene sliders and bronze bushings, this lift is manufactured with high quality parts ...resulting in almost no required maintenance.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 15,000 lbs capacity
• Single-point safety release
• 4 two-stages arms allowing to lift the trucks from short to long wheel base
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Adjustable two height setting accommodate varying service ceiling heights
• Aircraft-quality cable is used for synchronization

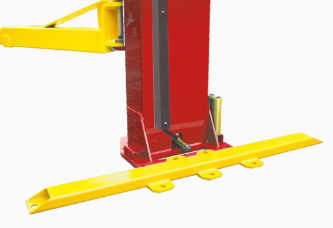

• Detachable foot guard and tool tray to allow for a clutter-free work space
• Stackable tube adapters (set of 4 ea.) 1.5″, 2.5″, 5″
• Anchor bolts and hardware included
Click links below for more info:
OH-15 2 Post Lift Manual

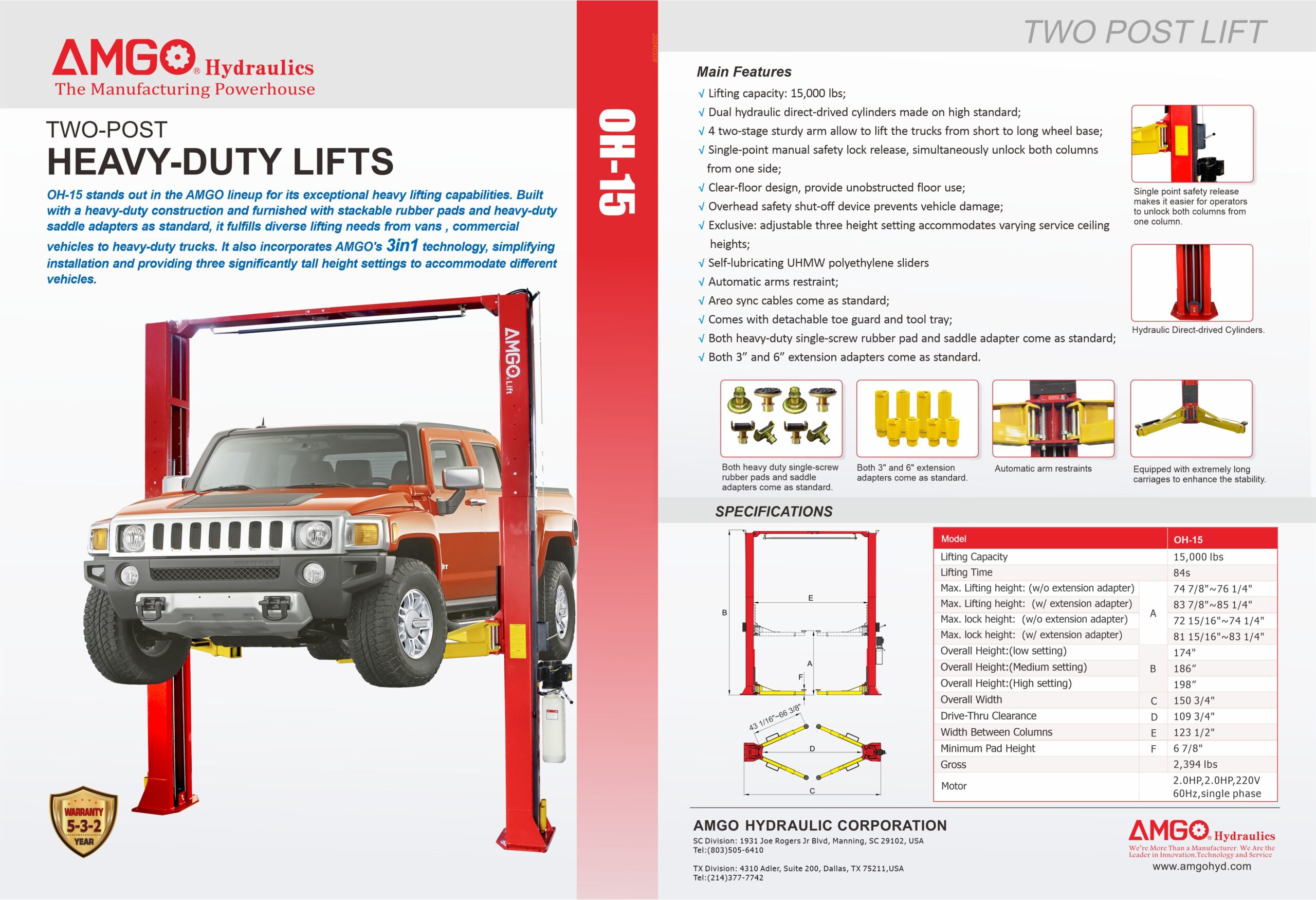

OH-15 2 Post Lift Brochure

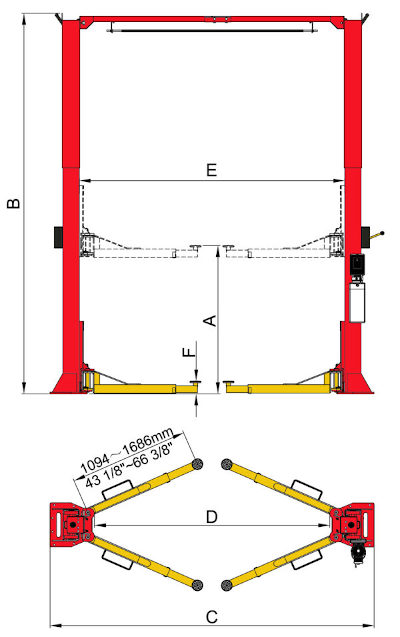

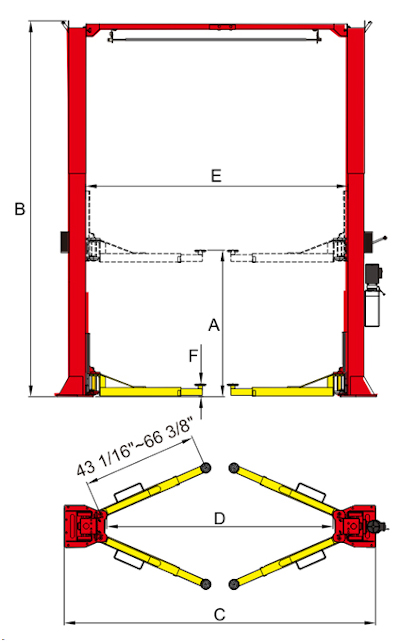

Specifications
Model OH-15
Lifting Capacity 15,000 lbs
Lifting Time 84S
A: Lifting Height 75 1/4″ ~ 84 1/4″
B: Overall Height 174″/ 198″
C: Overall Width 150 3/4″
D: Drive-Thru Clearance 109 3/4″
E: Width Between Columns 123 1/2″
F: Minimum Pad Height 7 1/2″
Motor 2.0HP/220V/60Hz,Single Phase
Gross Weight 2,573 lbs
